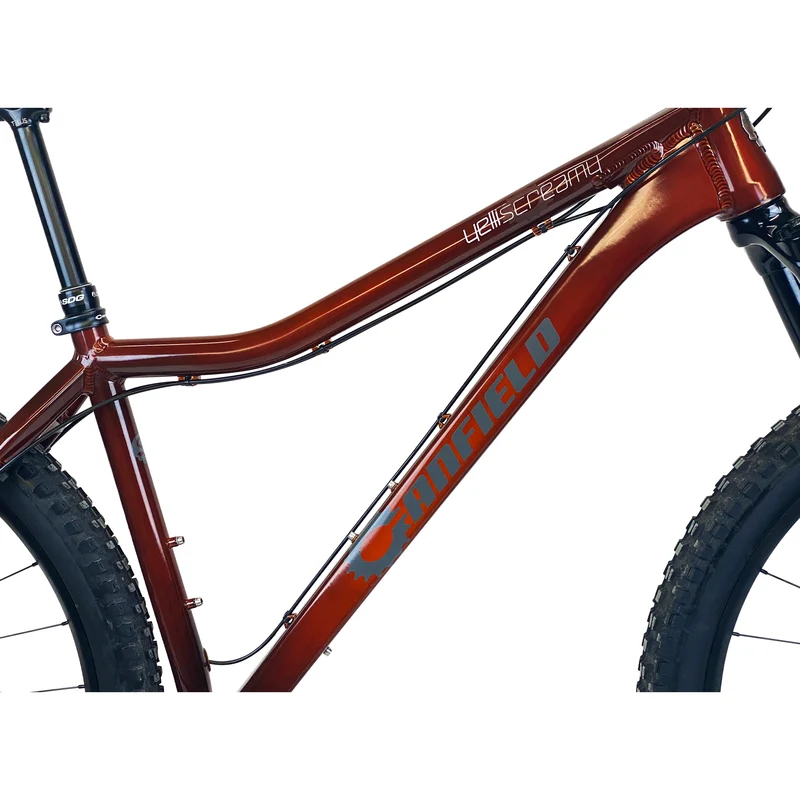

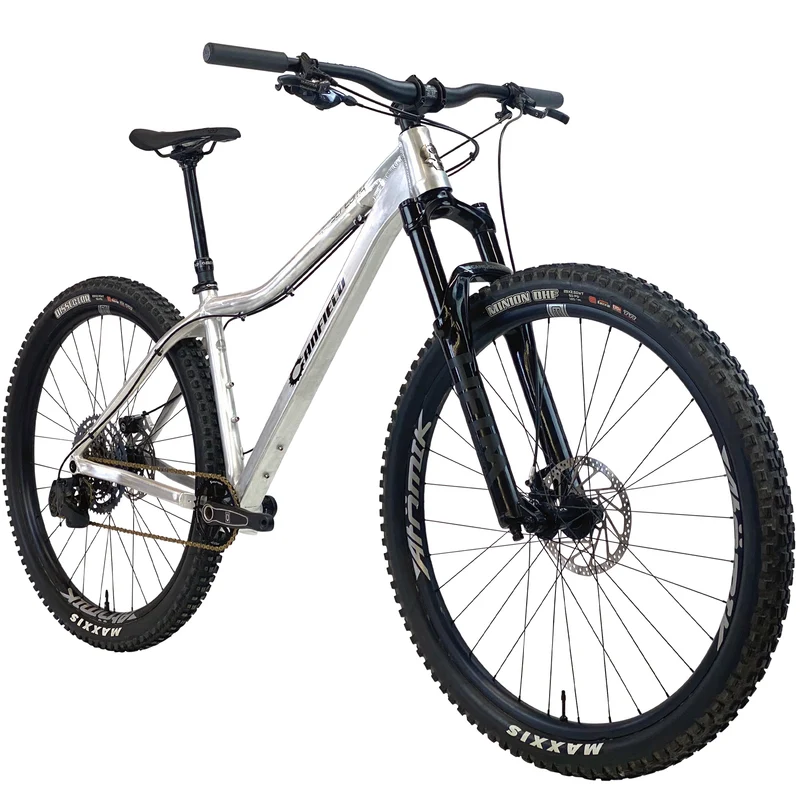

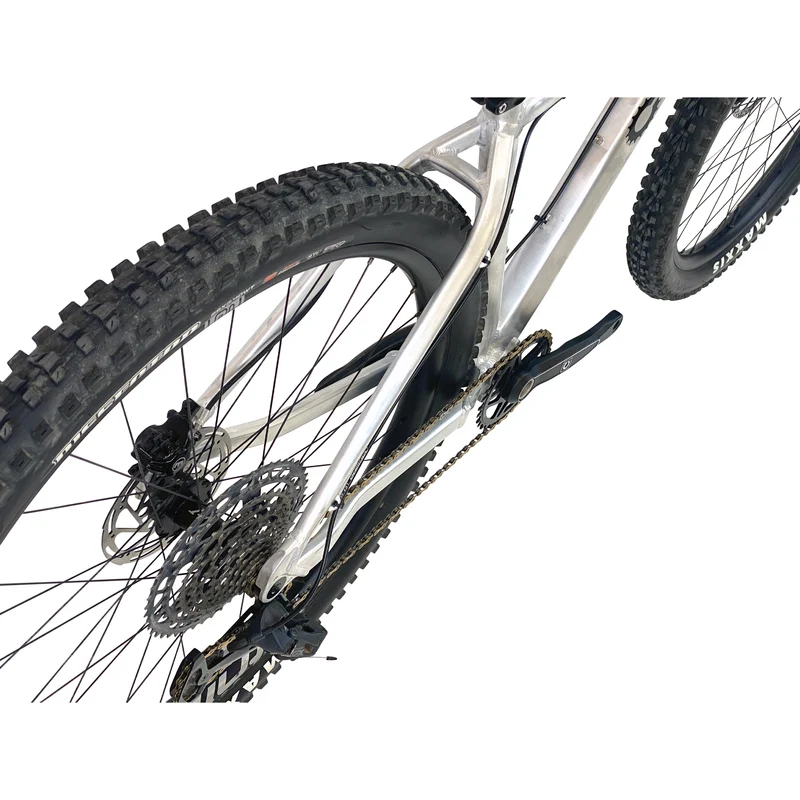

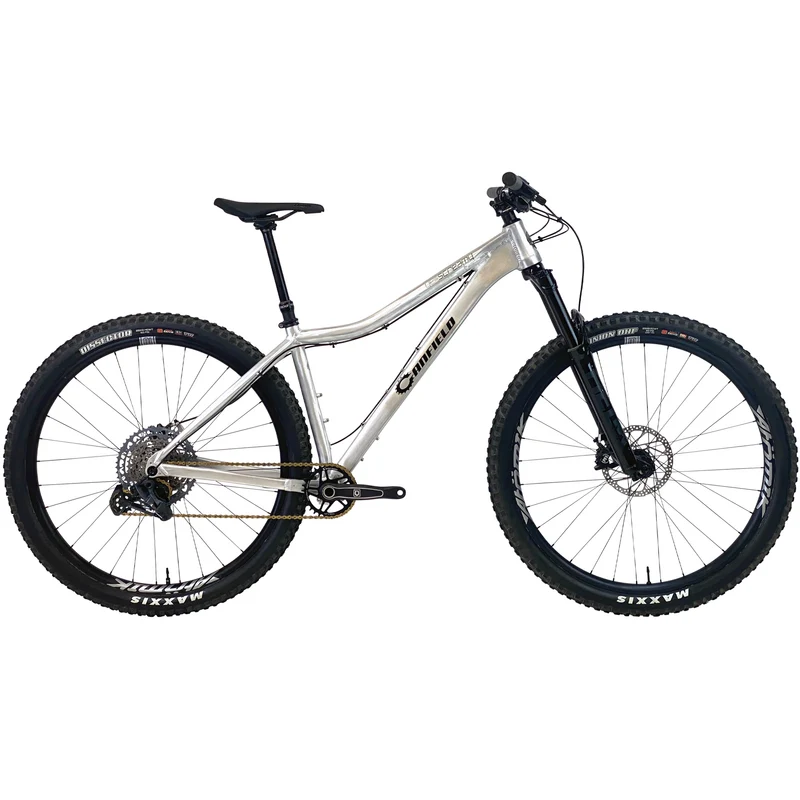

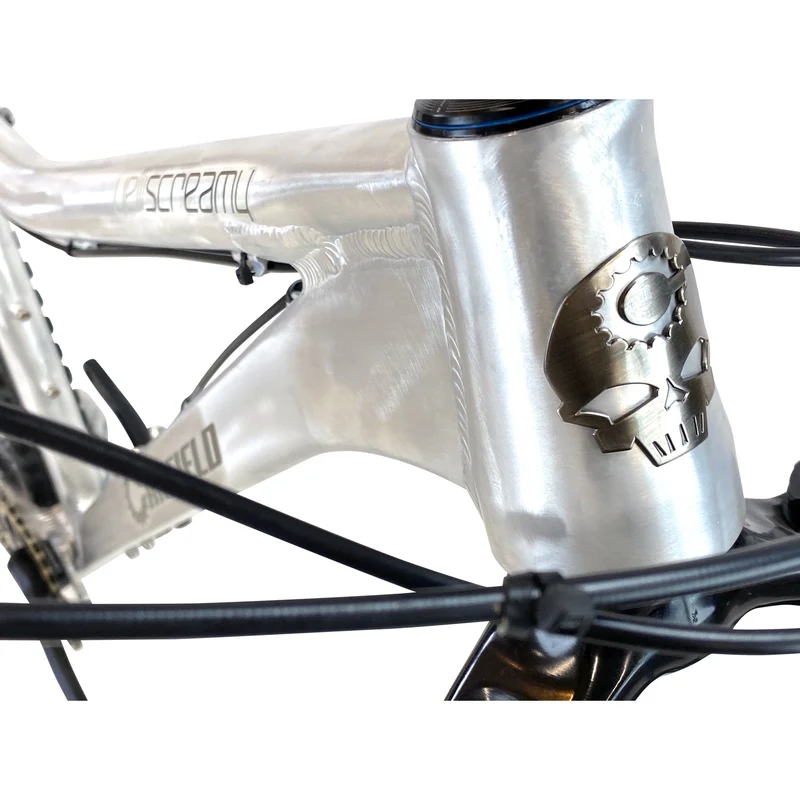

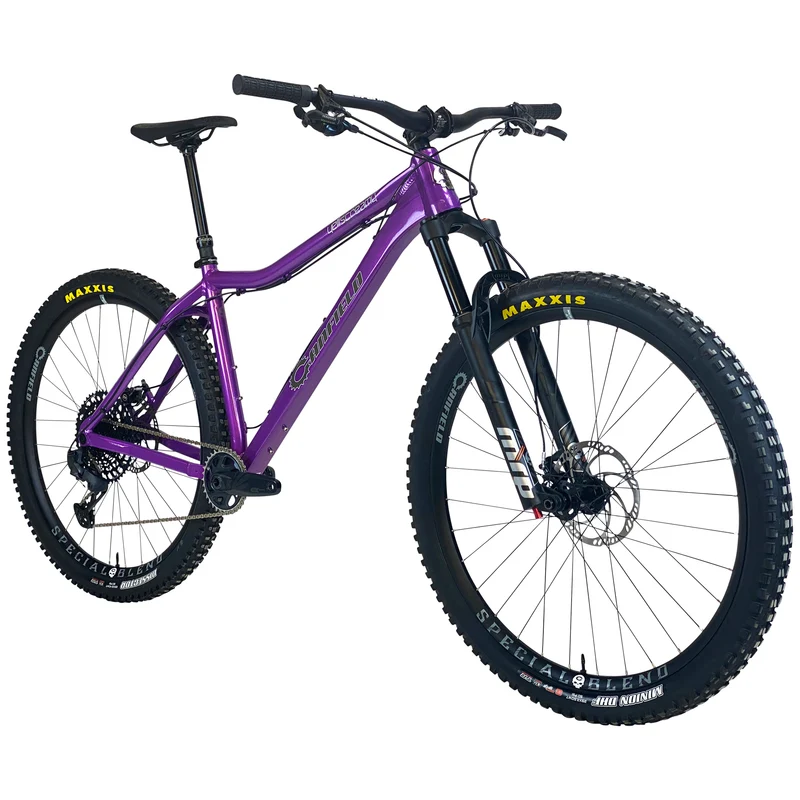

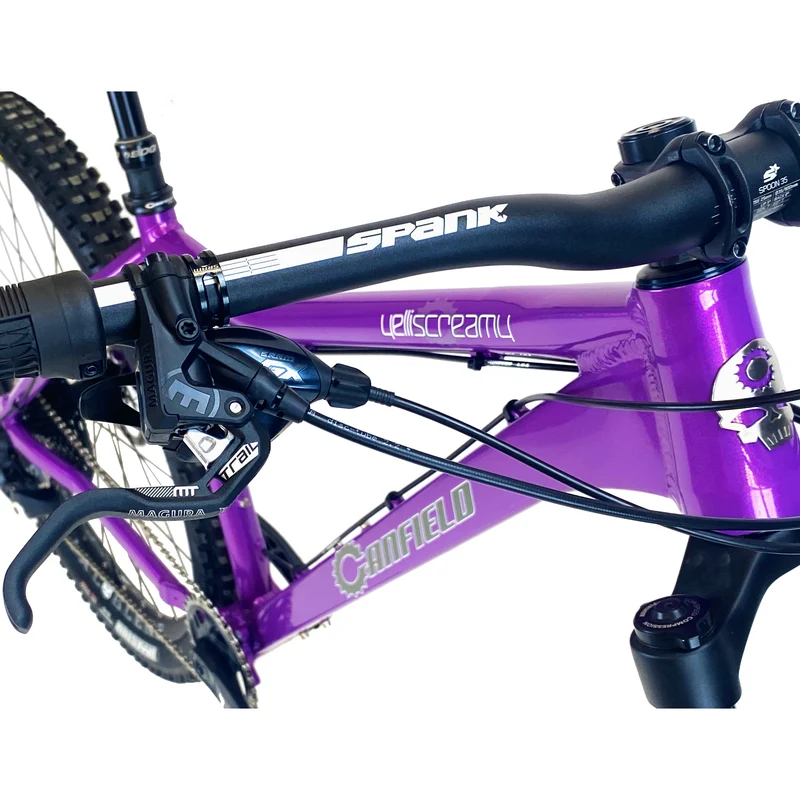

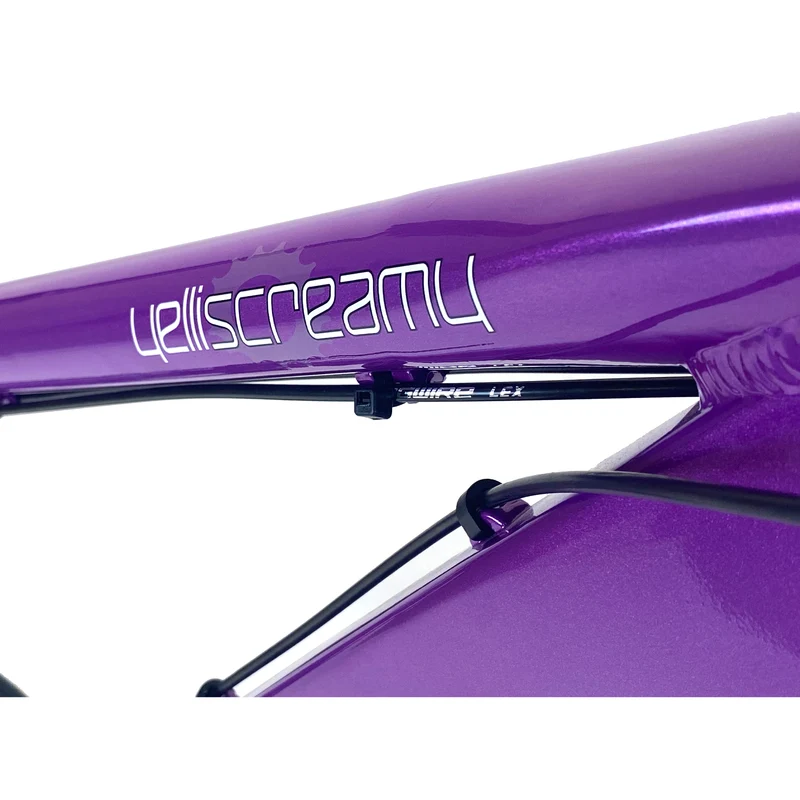

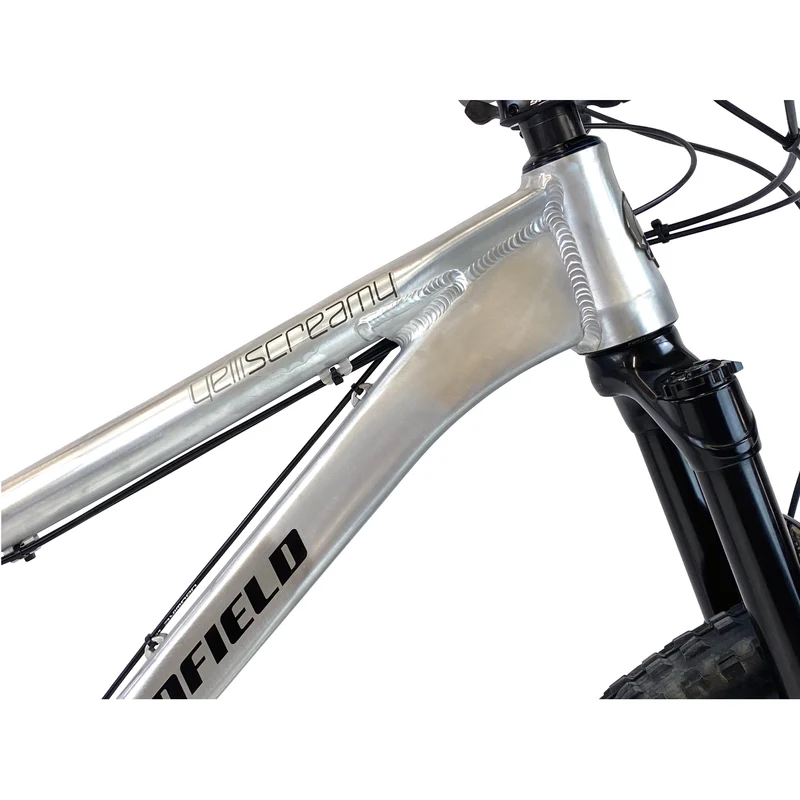

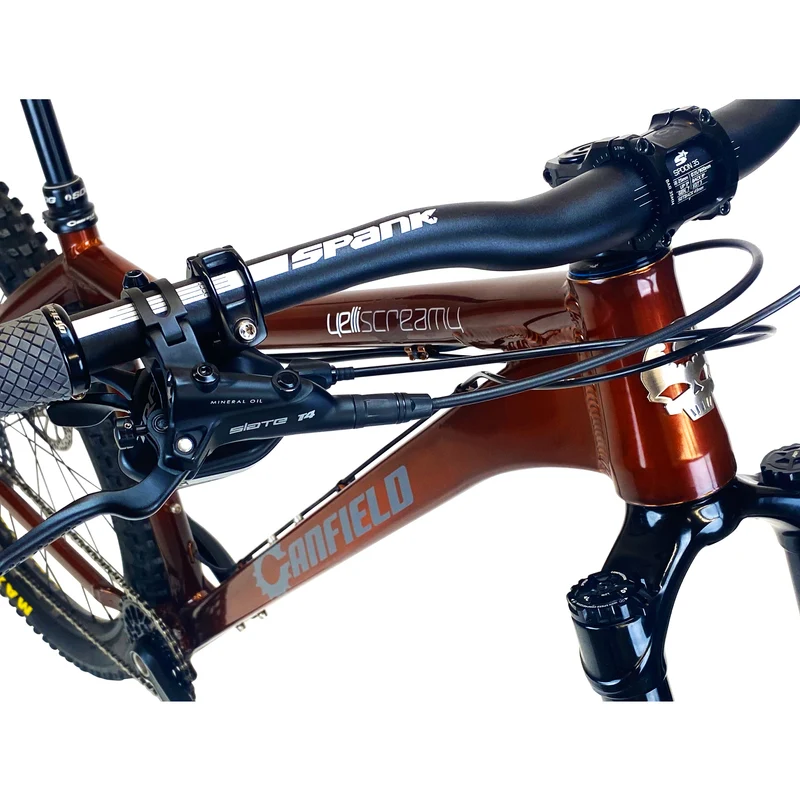

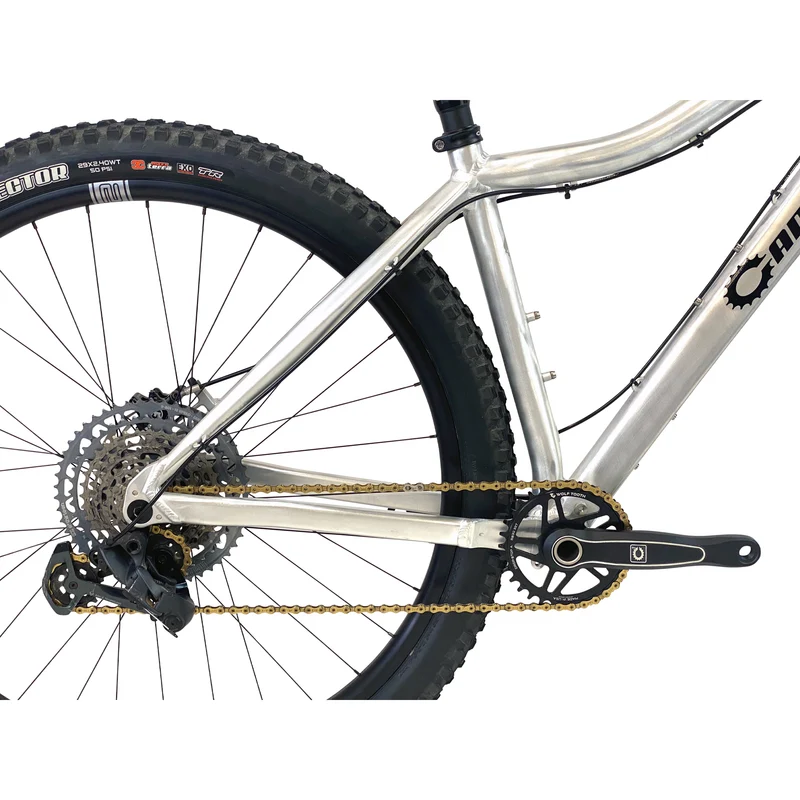

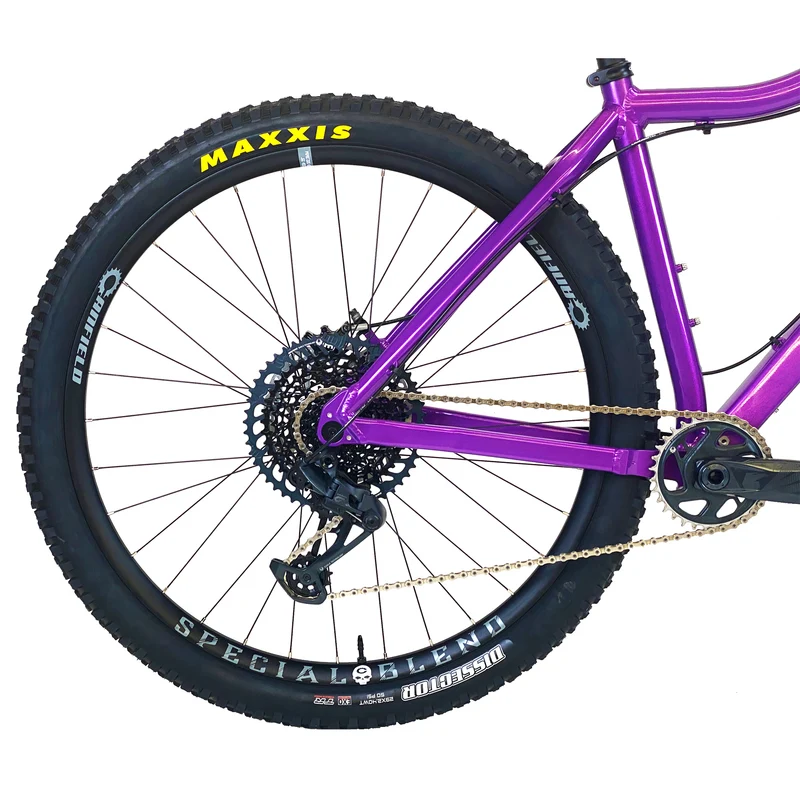

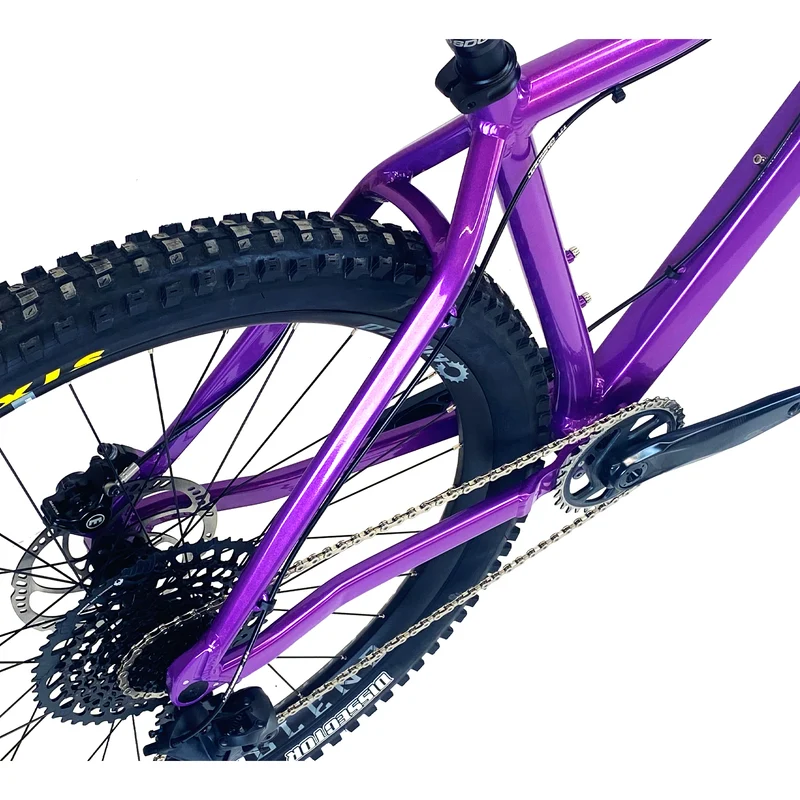

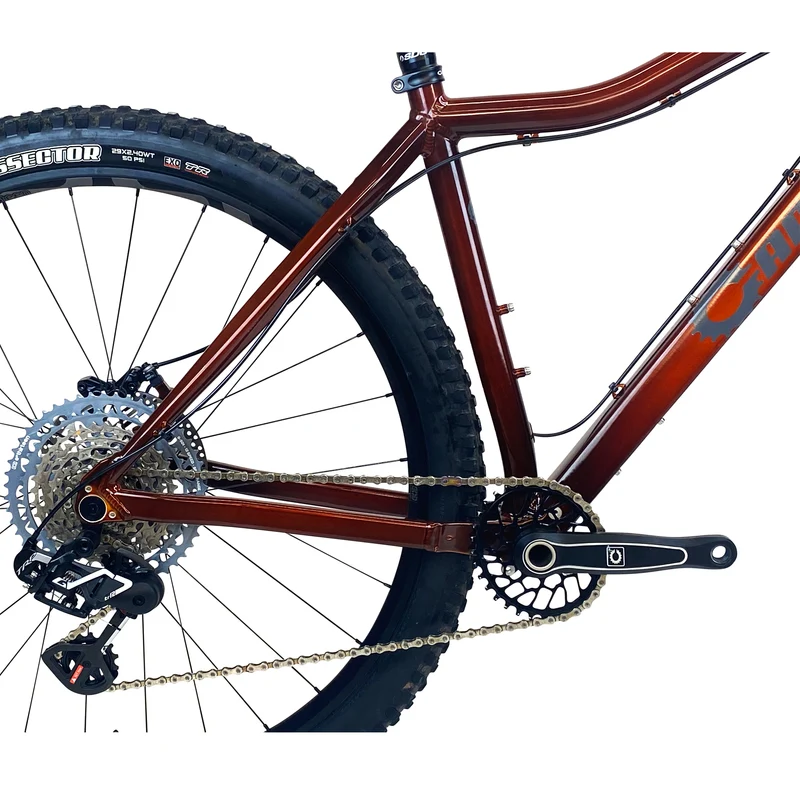

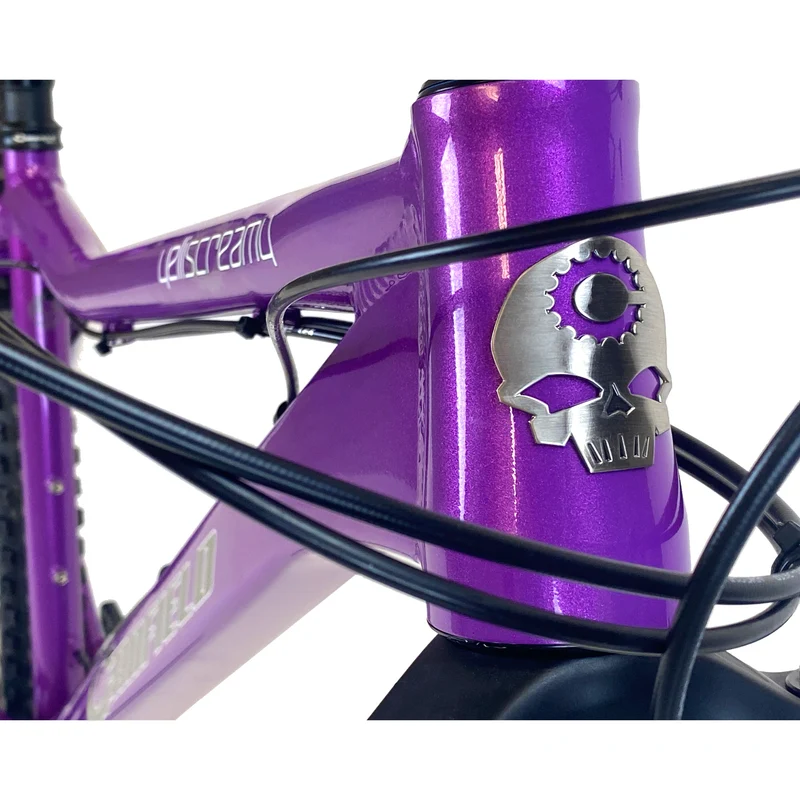

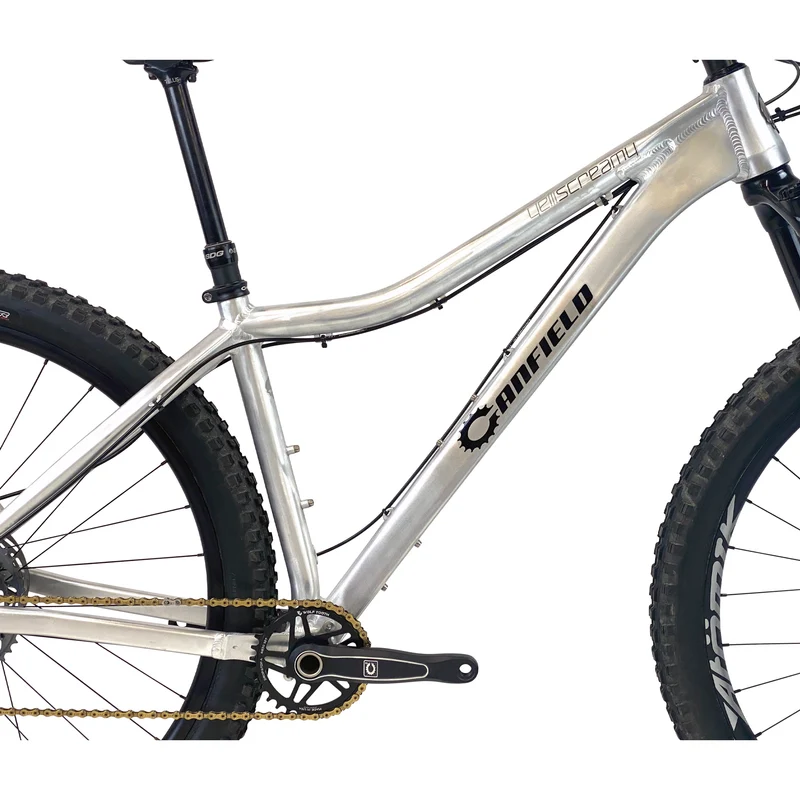

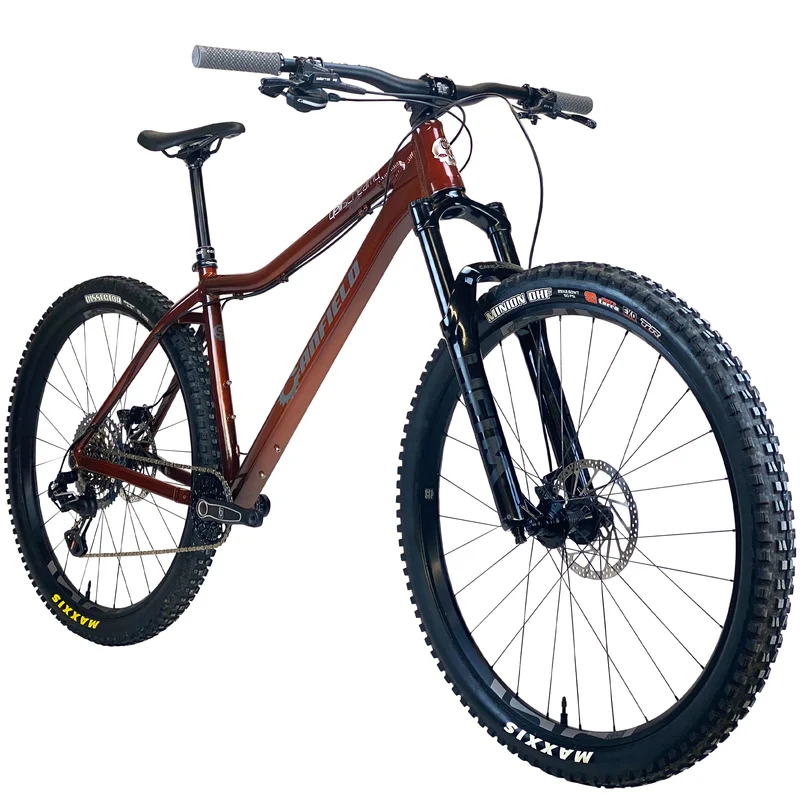

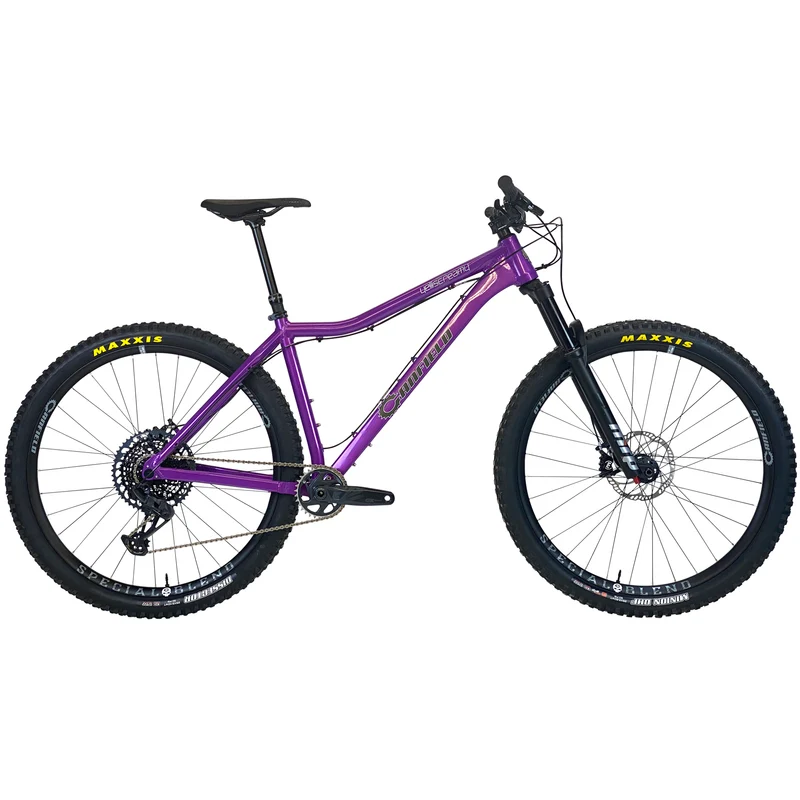

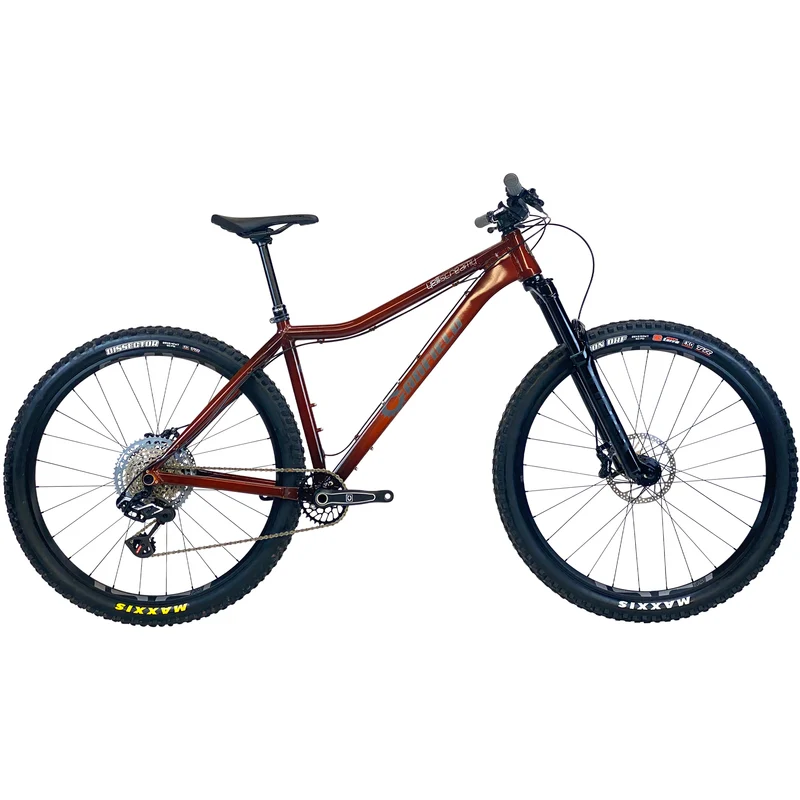

YELLI SCREAMY - Complete Bike

29" WHEELS // HARDTAIL // 130MM FRONT

We say Yelli, you say Screamy. The first hardtail to bring the party to wagon wheels is back with a vengeance. Slice and dice singletrack. Rail pump tracks and jump lines. Load it with frame bags and get lost. Keep up with your spandex-clad friends on the climbs and embarrass them on the descents.

Do whatever you want on the Yelli Screamy, just don’t tell it that it’s a short-travel 29er hardtail.

YELLI SCREAMY	CORE	PRO
Fork	Cane Creek Helm 130mm Fox 34 SL Factory Grip X 130mm RockShox Pike Ultimate 130mm	Cane Creek Helm 130mm Fox 34 SL Factory Grip X 130mm RockShox Pike Ultimate 130mm
Cranks	Canfield AM	Canfield AM
Chainring	e*thirteen 32t Round	e*thirteen 32t Round
Shifter	SRAM GX Eagle	SRAM X01 Eagle
Derailleur	SRAM GX Eagle	SRAM X01 Eagle
Cassette	e*thirteen Helix-R 9-50t	SRAM X01 Eagle 10-52t
Brakes	TRP Slate T4	TRP Trail EVO
Rotors	TRP 180/160mm	TRP 180/180mm
Wheels	DT Swiss E1900 Wheelset	DT Swiss E1900 Wheelset
Tires	Maxxis Assegai 2.5 Maxxis Dissector 2.4	Maxxis Assegai 2.5 Maxxis Dissector 2.4
Seatpost	SDG Tellis	SDG Tellis
Saddles	Canfield SDG	Canfield SDG
Bar	e*thirteen 800mm	e*thirteen 800mm
Stem	e*thirteen Base Stem 35 / 40mm	Enve Alloy MTN Stem  35 / 50mm
Grips	Lizard Skins Charger Evo	Lizard Skins Charger Evo
Seat Clamp	Canfield Black	Canfield Black

*Photos are for illustration purposes. Final production details and build spec subject to change. Full assembly required. Complete builds may take seven to 10 days to ship depending on in-stock inventory and parts availability.

FRAME FEATURES

• 29” Trail/AM Hardtail
• 6061-series aluminum
• Tapered Headtube (44x56)
• Recommended fork length: 120mm - 140mm
• Stealth dropper routing
• ISCG 05 tabs
• 73mm BSA Threaded BB
• Crank Length: 155mm (SM), 160mm (MD), 165mm (LG), 170mm (XL)
• 30.9mm seat post (34.9/35mm clamp compatible)
• Boost Spacing
• Rear Tire Clearance: 80mm/3.15 inches between stays (plus tires not recommended on 29-inch wheels due seat-tube clearance)
• Brake mount: PM 160mm
• Three water-bottle mounts
• Includes derailleur hanger, rear axle and hardware

GEO & SIZING

	SMALL	MEDIUM	LARGE	XL
Top Tube Length (Effective)	571	597	624	650
Reach	425	450	475	500
Front Center	736	763	793	820
Stack	630	635	644	649
Standover	677	709	746	769
Wheel Base	1,154	1,181	1,210	1,237
Head Tube Angle*	65.5	65.5	65.5	65.5
Head Tube Length	105	110	120	125
Seat Tube Angle (Effective)	77	77	77	77
Seat Tube Angle (Actual)	76.4	76.4	76.4	76.4
Seat Tube Length	380	420	460	490
Max. Seatpost Insertion	280	320	360	390
Chainstay Length	424	424	424	424
Bottom Bracket Height	316.5	316.5	316.5	316.5
Bottom Bracket Drop	58	58	58	58
Rider Height***	5'2"-5'7"	5'5"-5'11"	5'9"-6'3"	6'1"-6'6"

 *Geo based on 541mm axle to crown fork, 130mm travel
***Recommendation only. Sizing depends on body type, personal preference and riding style.
