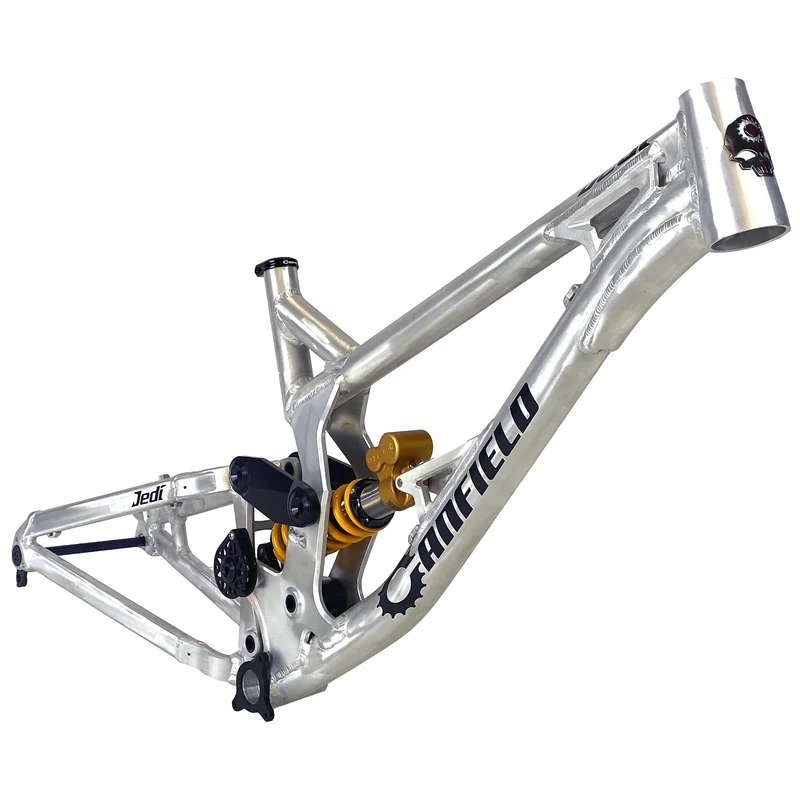

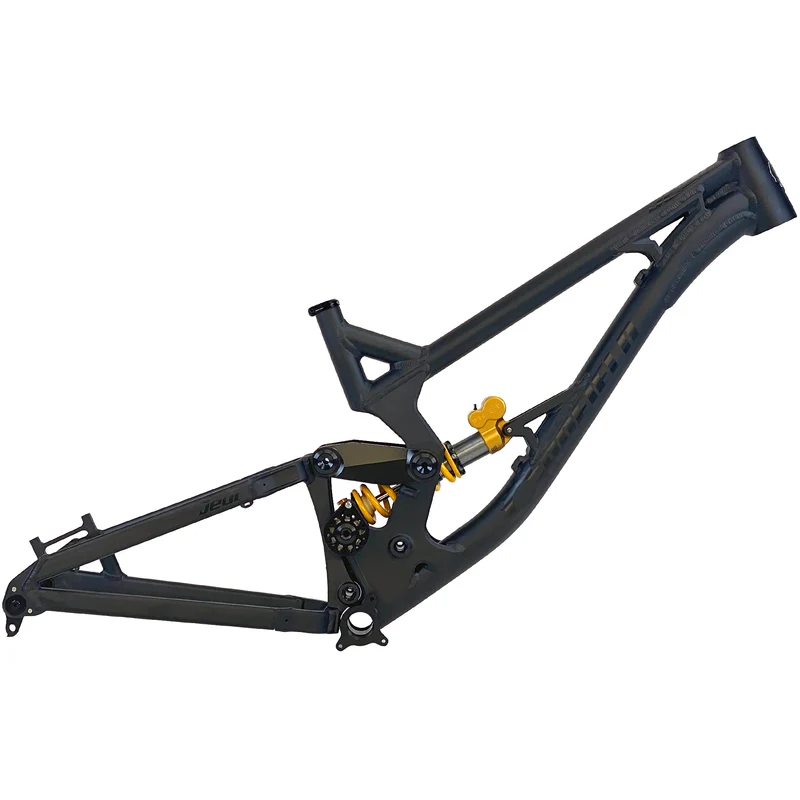

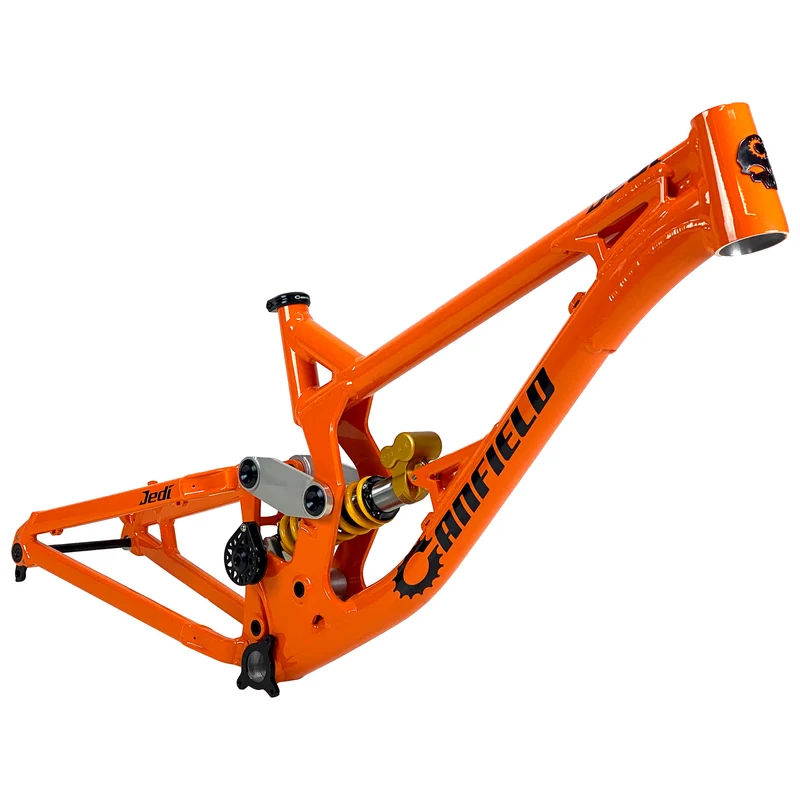

JEDI 29 - Frameset

29" WHEELS / 203mm REAR / 203mm FRONT

Return of the legend. Introducing the Canfield Jedi 29. One of the most revered downhill bikes is back and faster than ever before. But big wheels are just the beginning. With a redesigned frame, linkage layout and suspension kinematics, the all-new Jedi does what many thought impossible and improves one of the most iconic gravity machines in nearly every aspect.

FEATURES
• 29” Downhill Race
• Formula 1 Suspension
• Vertical Rear Travel: 203mm
• Horizontal Rear Travel: 19mm (horizontal) / 64mm (effective) • External cable routing
• Adjustable pulley wheel guide for optimal chain management with a variety of cassette sizes
• One-piece CNC upper and lower links
• Custom chainstay protector (not shown)
• Custom removable rear fender (can be used as a template to modify most front fenders)
• Custom MRP G5 bashguard  • Replaceable rear derailleur hanger
• Seat Clamp included
• Available in Medium, Large and X-Large
FRAME SPECS
• 7000 series aluminum • Shock Specs: Metric: 250mm x 75mm (203mm) (20mmX8mm front and rear)
• Recommend fork length: 200mm
• Headset: 44mm upper/56mm lower
• Bottom bracket: 83mm threaded • Max. chainring size: 38t
• Bottom bracket: 83mm, threaded
• Seatpost: 30.9mm
• Seatpost clamp: 35mm
• Rear dropouts: 157mm x 12mm, Canfield axle included
• 20mm Max pivot bearings
• ISCG 05
• Brake mount: PM 180mm
• Max rotor size: 223mm +

• Maximum seatpost insertion: 133mm(M), 143mm (L), 153mm (XL)

GEO & SIZING

SIZE	MEDIUM	LARGE	XL
Top Tube Length (Effective)	610mm	636mm	661mm
Reach	450mm	475mm	500mm
Front Center	825mm	852mm	877mm
Stack	640mm	644mm	644mm
Standover	711mm	711mm	711mm
Wheel Base	1,252mm	1,279mm	1,304mm
Head Tube Angle*	62.5°	62.5°	62.5°
Head Tube Length	115mm	120mm	120mm
Seat Tube Angle (Effective)	76°	76°	76°
Seat Tube Angle (Actual)	67°	67°	67°
Seat Tube Length	405mm	405mm	405mm
Chainstay Length (unsagged)	427mm	427mm	427mm
Chainstay Length (sagged)	443mm	443mm	443mm
Bottom Bracket Height (Approximate)**	351mm	351mm	351mm
Bottom Bracket Drop	24mm	24mm	24mm
Rider Height***	5'5"-5'11"	5'9"-6'3"	6'1"-6'6"

  Geo based on 601mm axle-to-crown fork
**Based on 2.5 tires and 601mm axle-to-crown fork
***Recommendation only. Sizing depends on body type, personal preference and riding style.
RECOMMENDED SPRING RATES*

*Ohlins coils use non-standard increments
