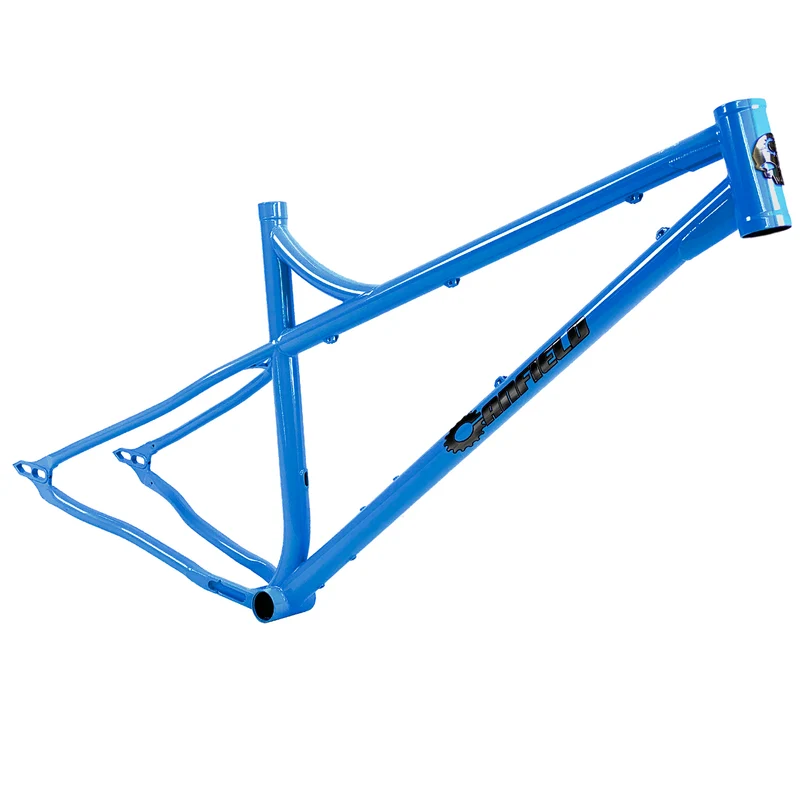

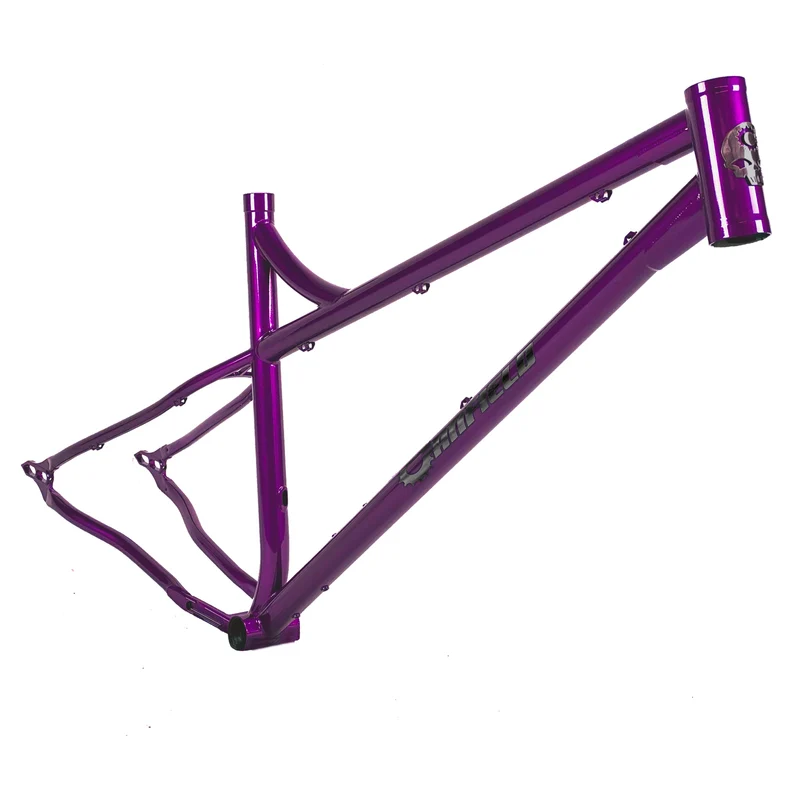

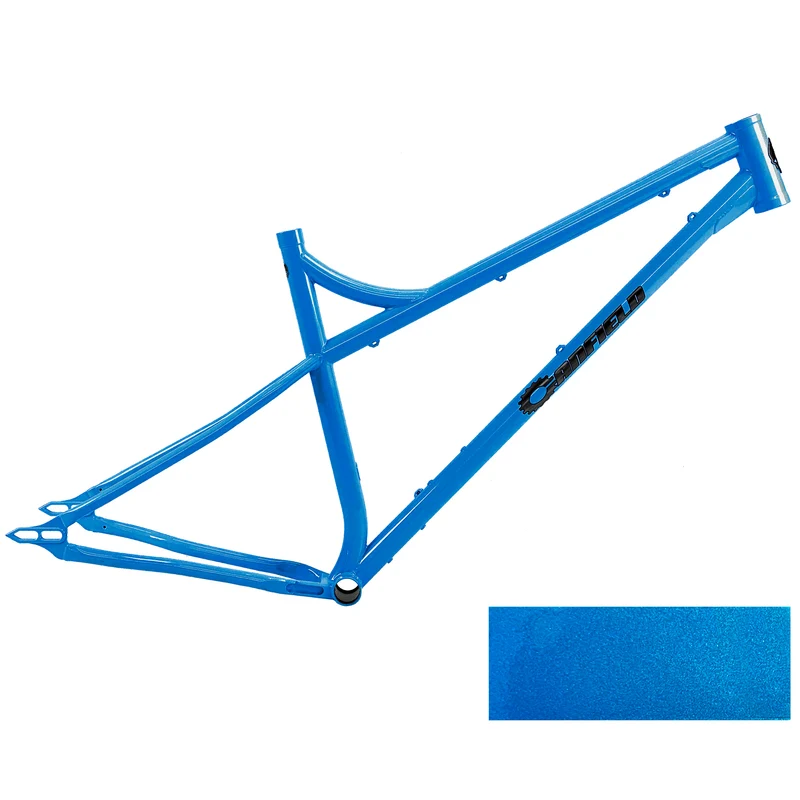

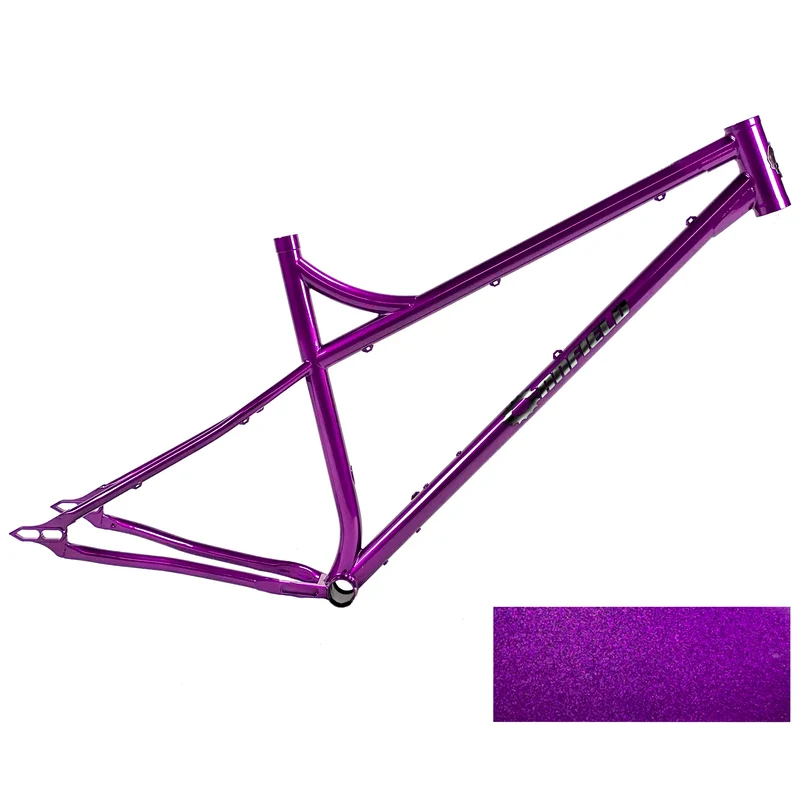

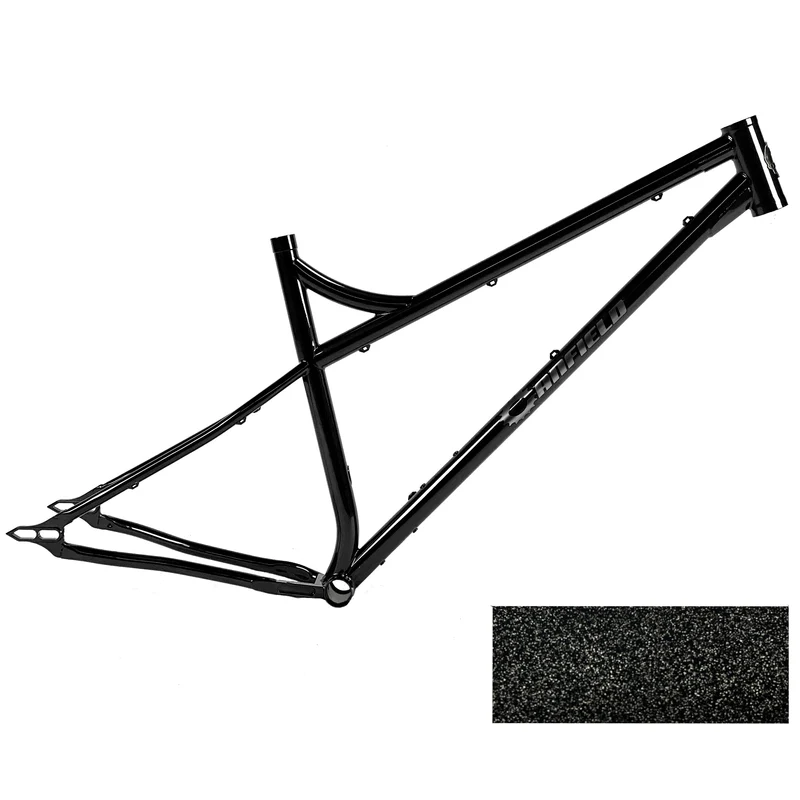

NIMBLE 9 - Frameset

29" WHEELS // HARDTAIL // 150MM FRONT

The original hardcore hardtail. Handcrafted in small batches, the Canfield Bikes Nimble 9 is a steel hardtail built to get rowdy. Combining the revered ride quality of 4130 chromoly steel with aggressive all-mountain geometry, the Nimble 9 challenges preconceptions of mountain bikes with both big wheels and rigid rear-ends.

FRAME FEATURES

• 29″ All Mountain
• 4130 chromoly steel
• Radial-bent seat stays for vertical compliance
• Increased reach and shorter seat tube
• 66° head angle (w/ 150mm fork)
• Headset: Straight 44mm upper/44mm lower
• Recommended fork length: 140mm - 160mm
• Custom sliding Boost 148mm x 12mm rear dropouts, axle included
• 73mm BSA Threaded BB
• 30.9mm seat post
• 34.9 or 35mm clamp size
• Adjustable 16.33“ – 16.93” chainstays
• Brake mount: IS 160mm
• Singlespeed-able
• Stealth cable routing
• Two water bottle bosses

• Includes dropouts/derailleur hanger, rear axle and hardware
• Max. chainring size: 34t round / 32t oval
• Max. seatpost insertion: 200mm(S), 235(M), 275(L), 320(XL)

Full assembly is required on complete bikes.

Canfield Nimble 9 Geo
(Based on 150mm fork, 563mm Axle to Crown)

Size	S	M	L	XL
Top Tube Length (Effective)*	570mm	597mm	625mm	652mm
Reach	425mm	450mm	475mm	500mm
Stack*	634mm	638mm	648mm	656mm
Standover Height*	745mm	780mm	800mm	830mm
Seat Tube Length	370mm	405mm	445mm	490mm
Wheel Base*	1156mm	1183mm	1212mm	1241mm
Head Tube Angle	66°	66°	66°	66°
Seat Tube Angle (Effective)	77°	77°	77°	77°
Chainstay Length	415-430mm	415-430mm	415-430mm	415-430mm
Bottom Bracket Height	325mm	325mm	325mm	325mm
Bottom Bracket Drop	50mm	50mm	50mm	50mm
Head Tube length	100mm	105mm	115mm	125mm

*Geo based on 150mm travel fork. Static measurement (not sagged).

SIZING

SIZE	S	M	L	XL
RIDER HEIGHT	5'2"-5'7"	5'5"-5'11"	5'9"-6'3"	6'1"-6'6"

*This size chart is only a suggestion. Every riding style and body is different.

*Photos are for illustration purposes. Final production details may vary.
