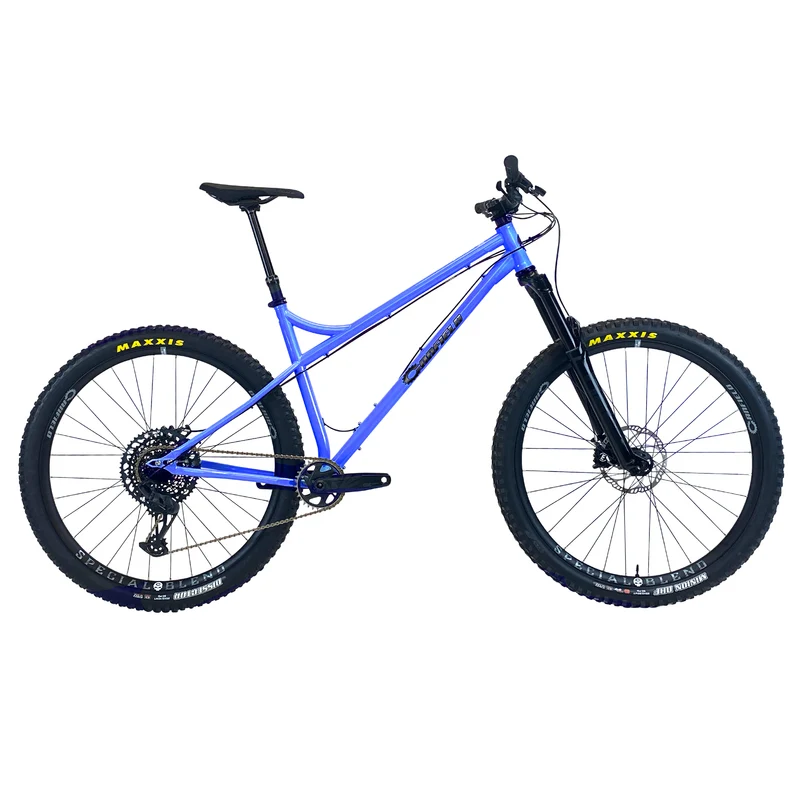

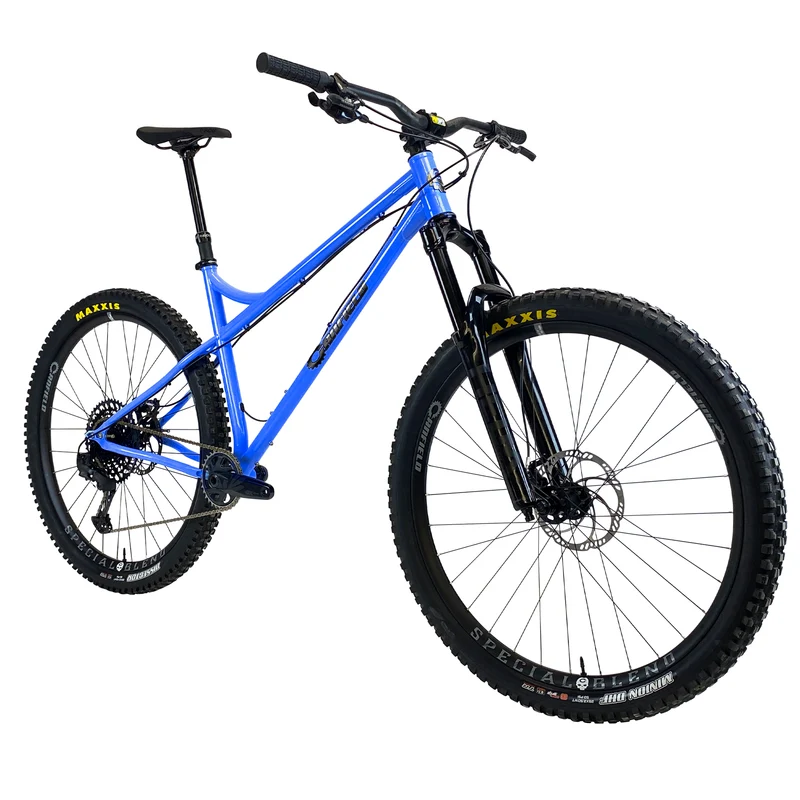

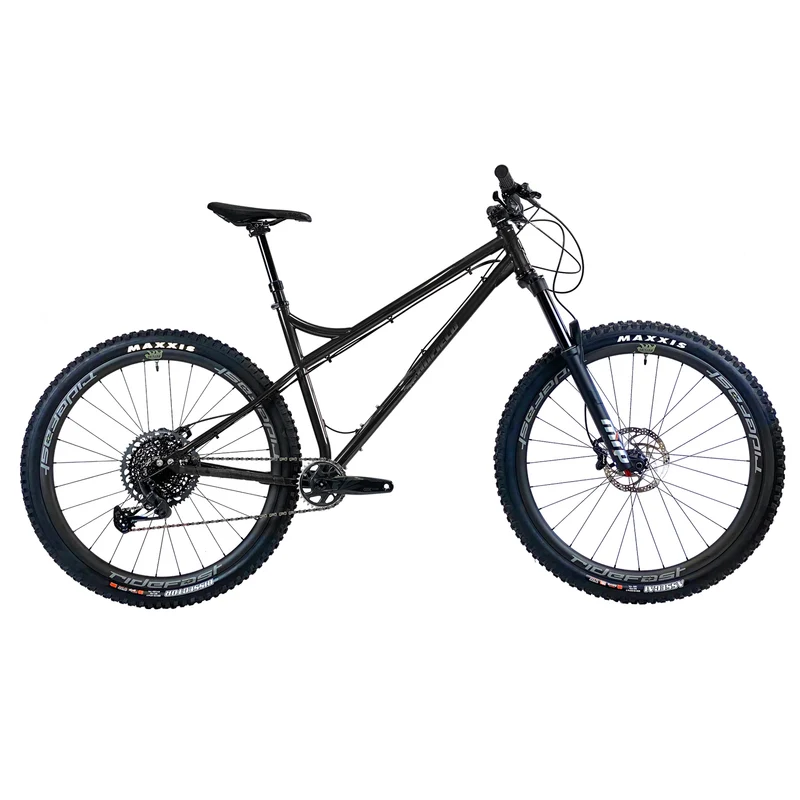

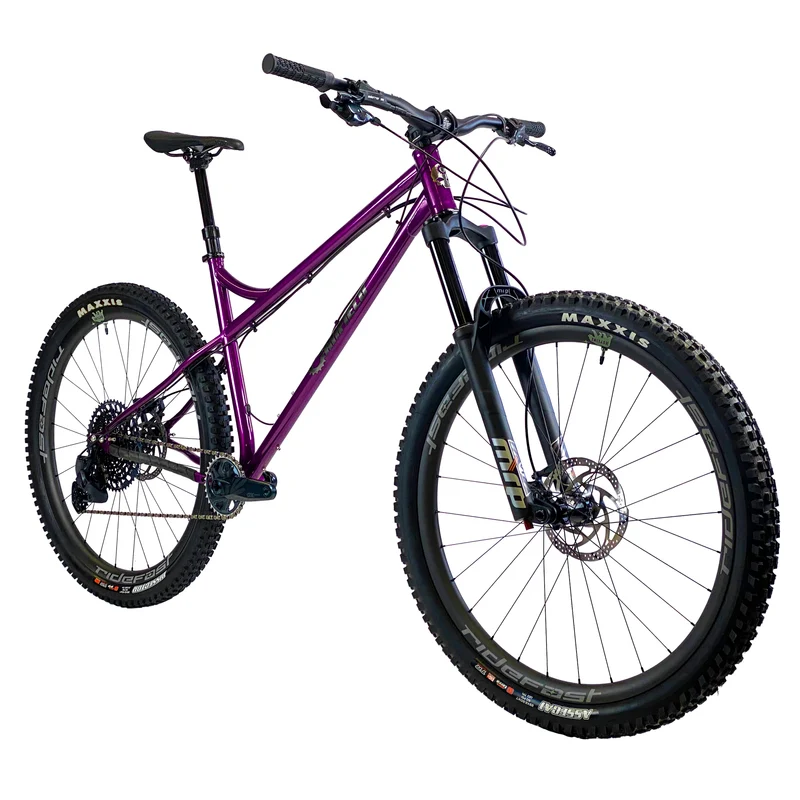

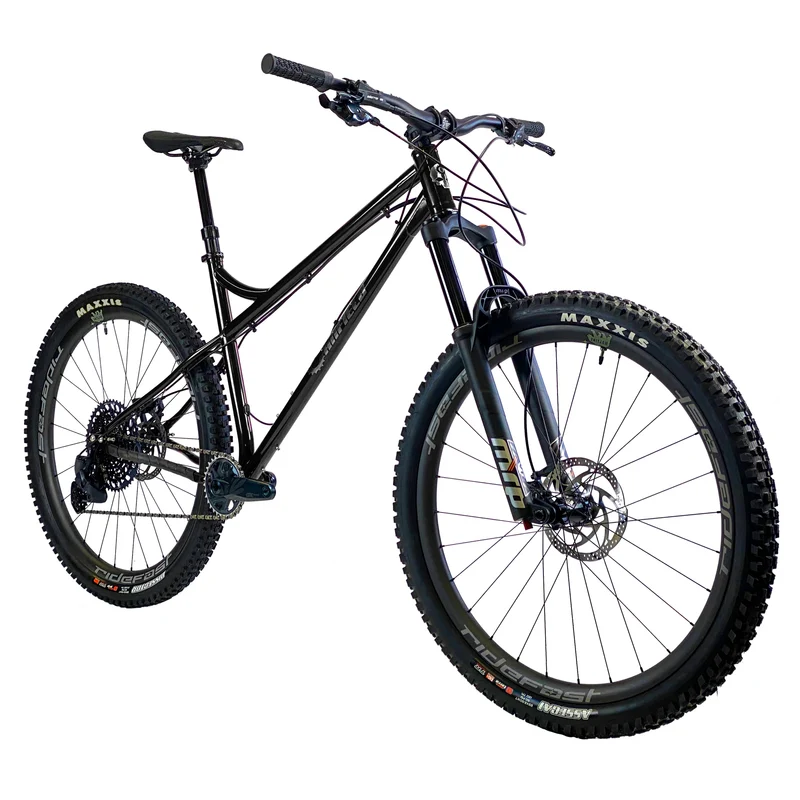

NIMBLE 9 - Complete Bike

29" WHEELS // HARDTAIL // 150MM FRONT

The original hardcore hardtail. Handcrafted in small batches, the Canfield Bikes Nimble 9 is a steel hardtail built to get rowdy. Combining the revered ride quality of 4130 chromoly steel with aggressive all-mountain geometry, the Nimble 9 challenges preconceptions of mountain bikes with both big wheels and rigid rear-ends.

Complete builds may take seven to 10 days to ship depending on in-stock inventory and parts availability.

CORE	PRO
Fork: Fox 36 Factory 150mm	Fork: Fox 36 Factory 150mm
Cranks: Canfield AM	Cranks: Canfield AM
Chainring: e*thirteen 32t Round	Chainring: e*thirteen 32t Round
Shifter: SRAM GX Eagle	Shifter: SRAM X01 Eagle
Derailleur: SRAM GX Eagle	Derailleur: SRAM X01 Eagle
Cassette: e*thirteen Helix-R 9-50t	Cassette: SRAM X01 Eagle 10-52t
Brakes: TRP Slate T4	Brakes: TRP Trail EVO
Rotors: TRP 180/160mm	Rotors: TRP 180/160mm
Wheels: DT Swiss E1900 Wheelset	Wheels: Atomik AL30
Tires: Maxxis Minion DHF 2.5 / Maxxis Dissector 2.4	Tires: Maxxis Minion DHF 2.5 / Maxxis Dissector 2.4
Seatpost: SDG Tellis	Seatpost: SDG Tellis
Saddles: Canfield SDG	Saddles: Canfield SDG
Bar: e*thirteen 800mm	Bar: e*thirteen 800mm
Stem: e*thirteen Base Stem 35 / 40mm	Stem: Enve Alloy MTN Stem 35 / 50mm
Grips: Lizard Skins Charger Evo	Grips: Lizard Skins Charger Evo
Seat Clamp: Canfield	Seat Clamp: Canfield

*Photos are for illustration purposes. Final production details and build spec subject to change. Full assembly required.

FRAME FEATURES

• 29″ All Mountain
• 4130 chromoly steel
• Radial-bent seat stays for vertical compliance
• Increased reach and shorter seat tube
• 66° head angle (w/ 150mm fork)
• Recommended fork length: 140mm - 160mm
• Custom sliding Boost 148mm x 12mm rear dropouts, axle included
• 73mm BSA Threaded BB
• Crank Length: 155mm (SM), 160mm (MD), 165mm (LG), 170mm (XL)
• 30.9mm seat post
• 34.9 or 35mm clamp size
• Adjustable 16.33“ – 16.93” chainstays
• Brake mount: IS 160mm
• Singlespeed-able
• Stealth cable routing
• Two water bottle bosses

• Includes dropouts/derailleur hanger, rear axle and hardware
• Max. chainring size: 34t round / 32t oval
• Max. seatpost insertion: 200mm(S), 235(M), 275(L), 320(XL)

Full assembly is required on complete bikes.

Canfield Nimble 9 Geo (Based on 150mm fork, 563mm Axle to Crown)
Top Tube Length (Effective) S-570mm / M-597mm / L-625mm / XL-652mm
Reach S-425mm / M-450mm / L-475mm / XL-500mm
Stack S-634mm / M-638mm / L-648mm / XL-656mm
Standover Height S-745mm / M-780mm / L-800mm / XL-830mm
Seat Tube Length S-370mm / M-405mm / L-445mm / XL-490mm
Wheel Base S-1156mm / M-1183mm / L-1212mm / XL-1241mm
Head Tube Angle S-66° / M-66° / L-66° / XL-66°
Seat Tube Angle (Effective) S-77° / M-77° / L-77° / XL-77°
Chainstay Length S-415-430mm / M-415-430mm / L-415-430mm / XL-415-430mm
Bottom Bracket Height S-325mm / M-325mm / L-325mm / XL-325mm
Bottom Bracket Drop S-50mm / M-50mm / L-50mm / XL-50mm
Head Tube Length S-100mm / M-105mm / L-115mm / XL-125mm

SIZING

SIZE	S	M	L	XL
RIDER HEIGHT	5'2"-5'7"	5'5"-5'11"	5'9"-6'3"	6'1"-6'6"

*This size chart is only a suggestion. Every riding style and body is different.

*Photos are for illustration purposes. Final production details may vary.
