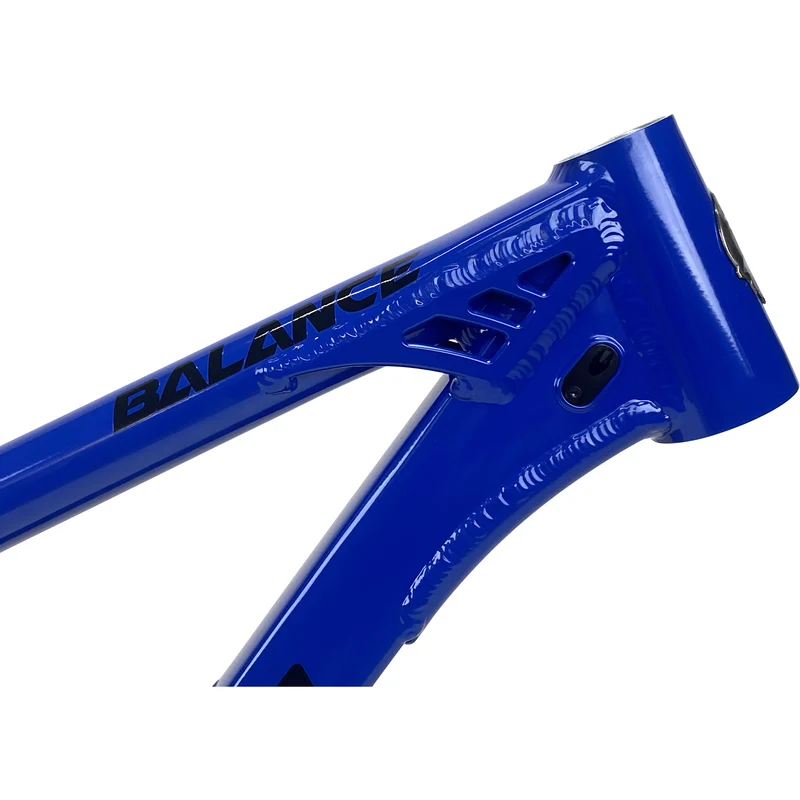

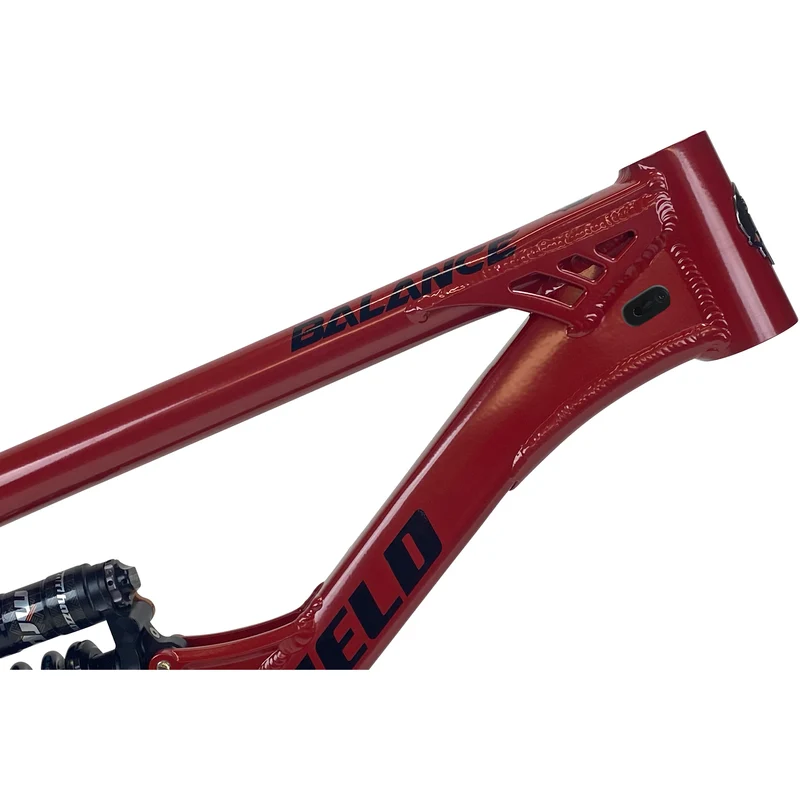

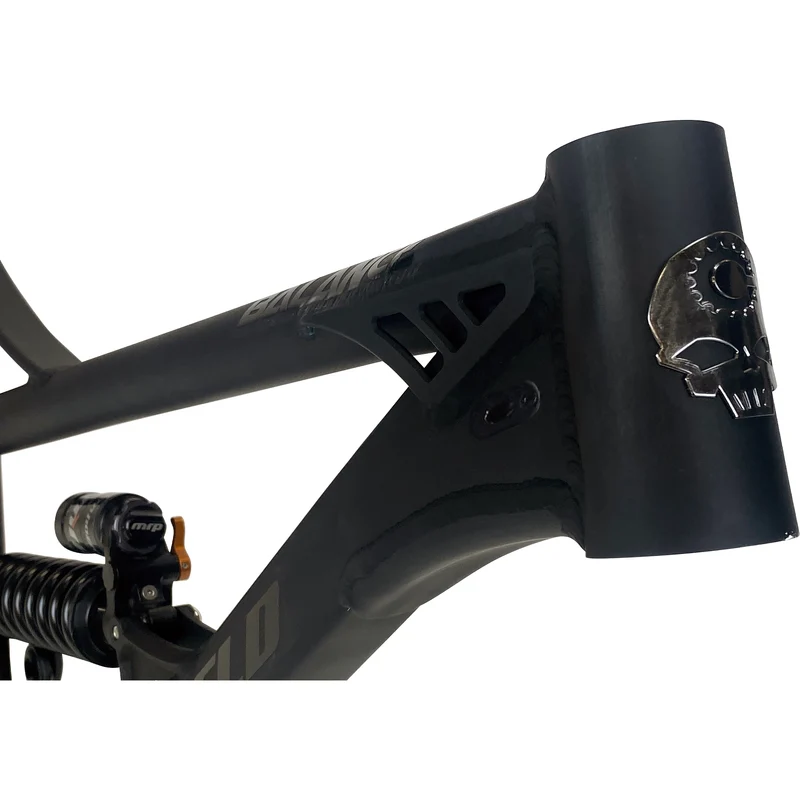

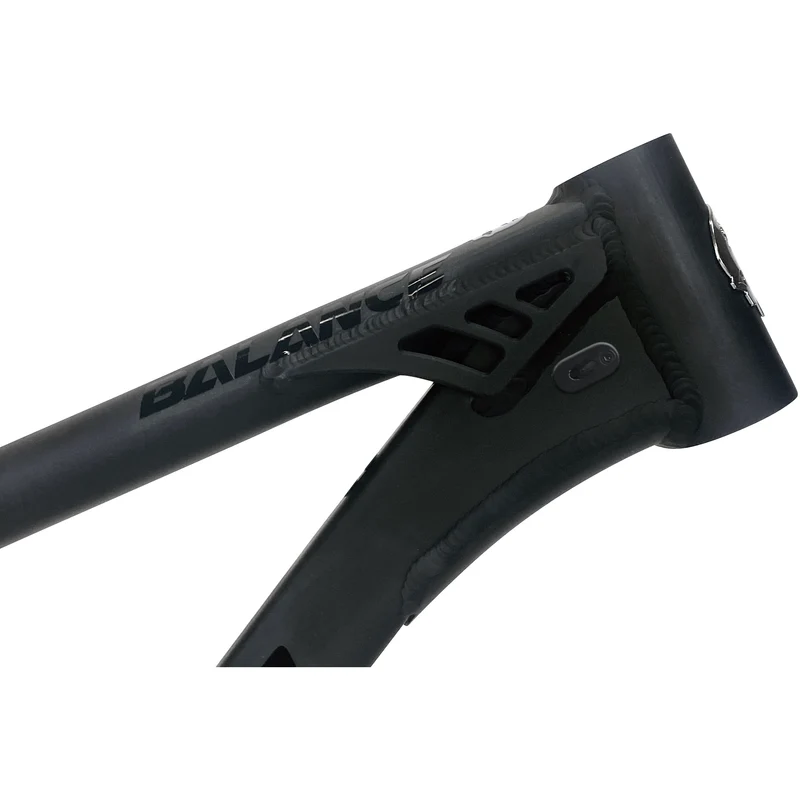

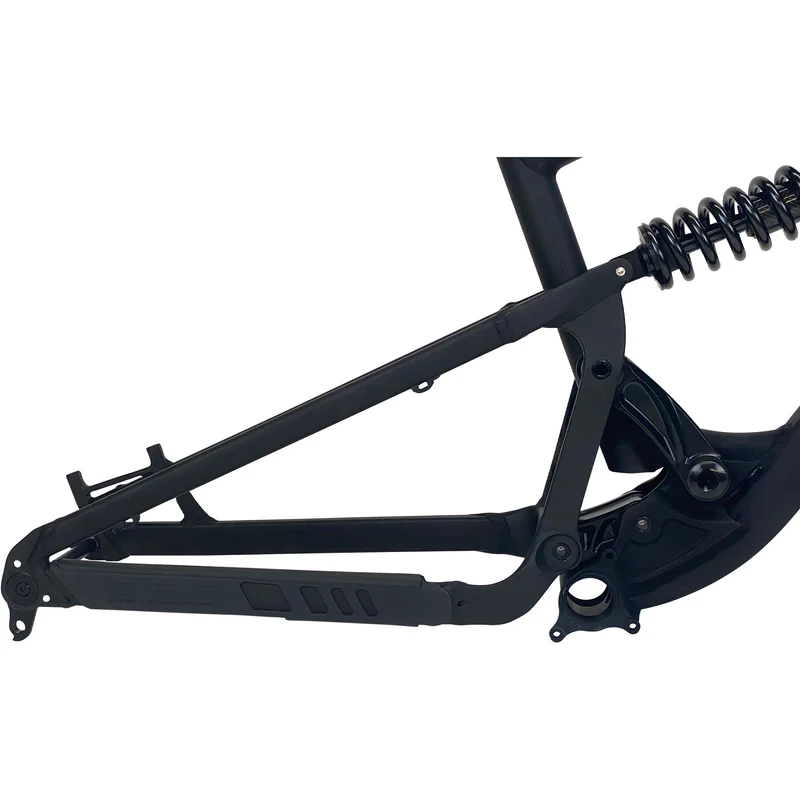

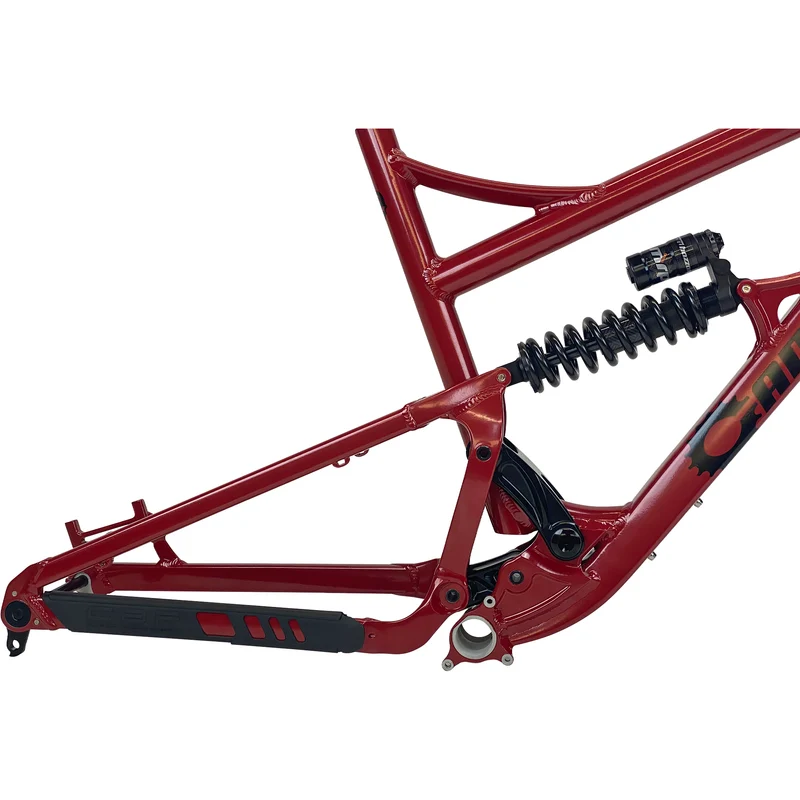

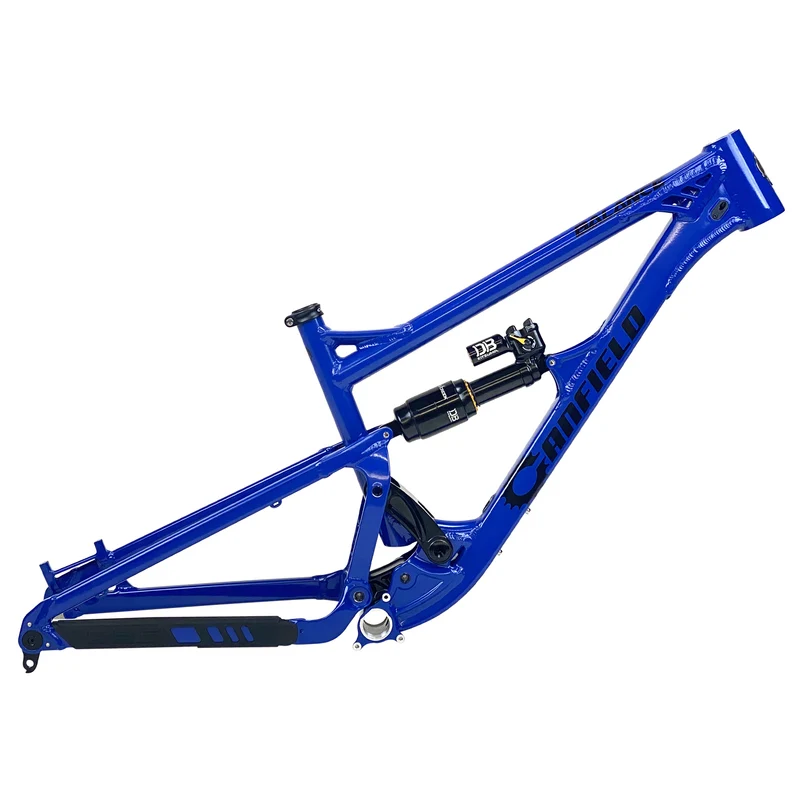

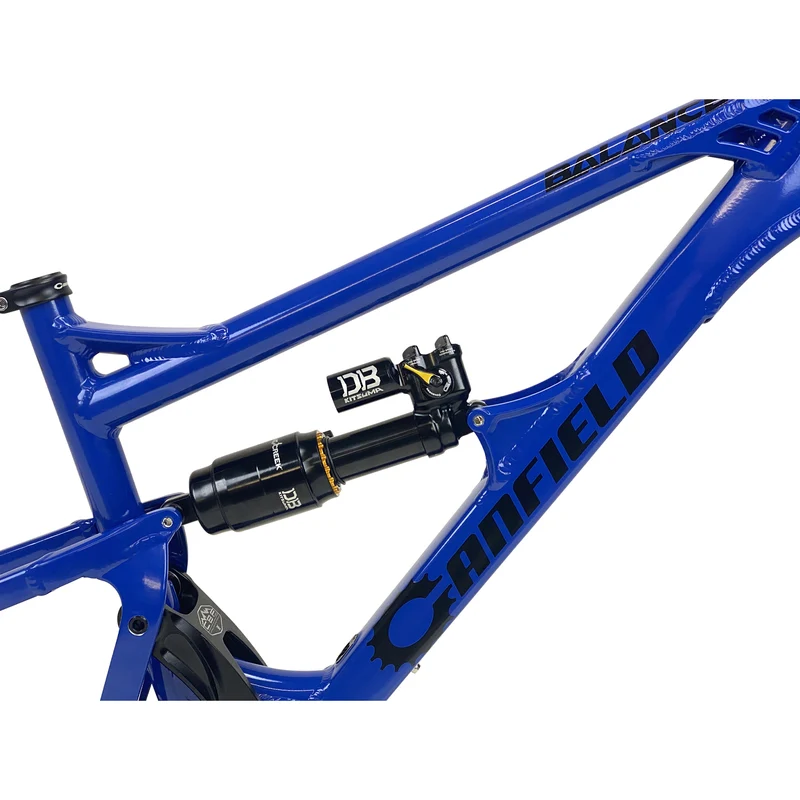

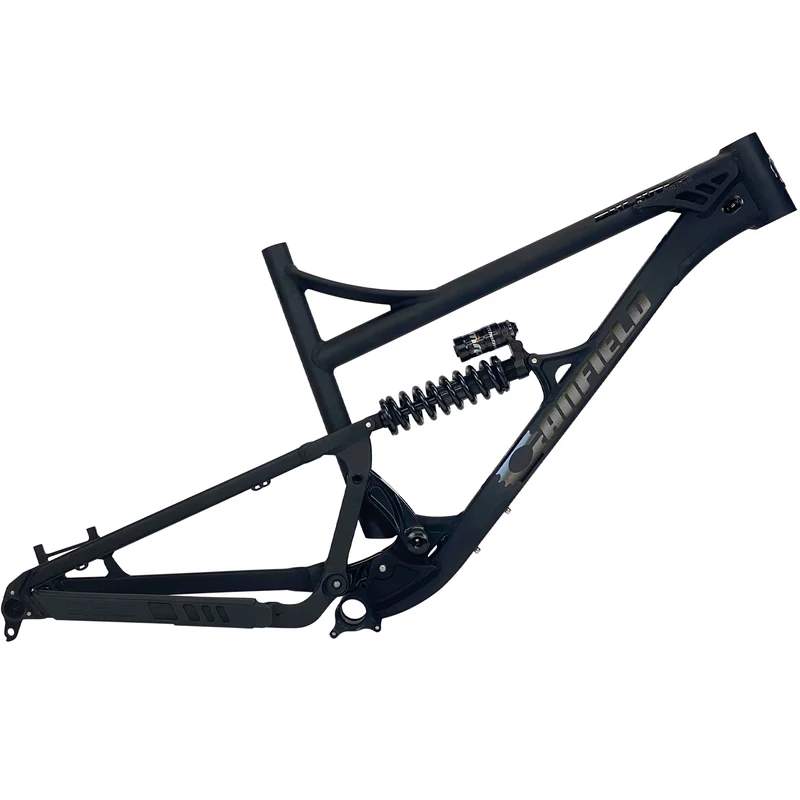

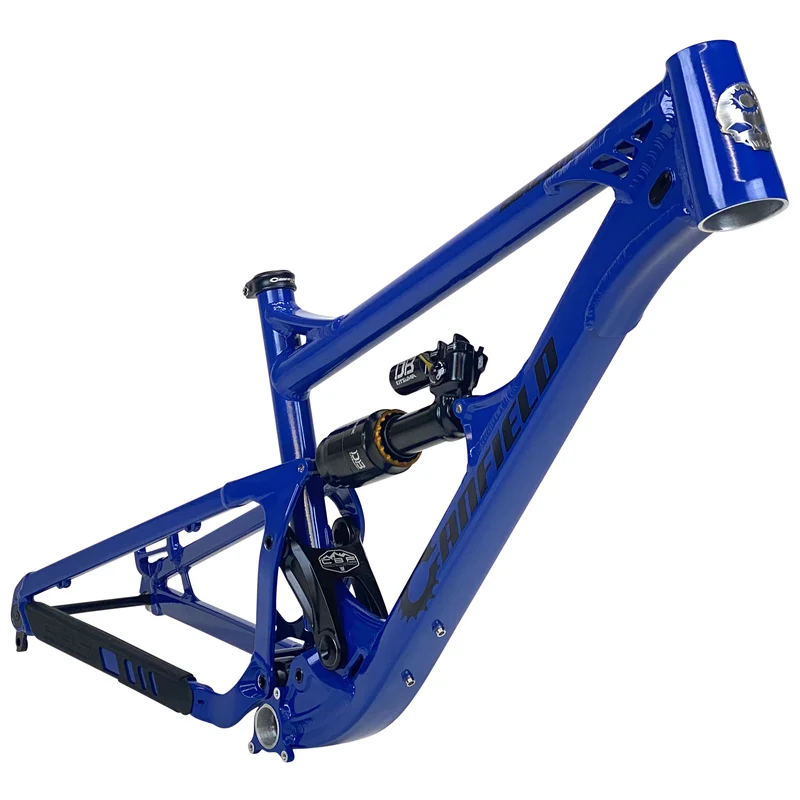

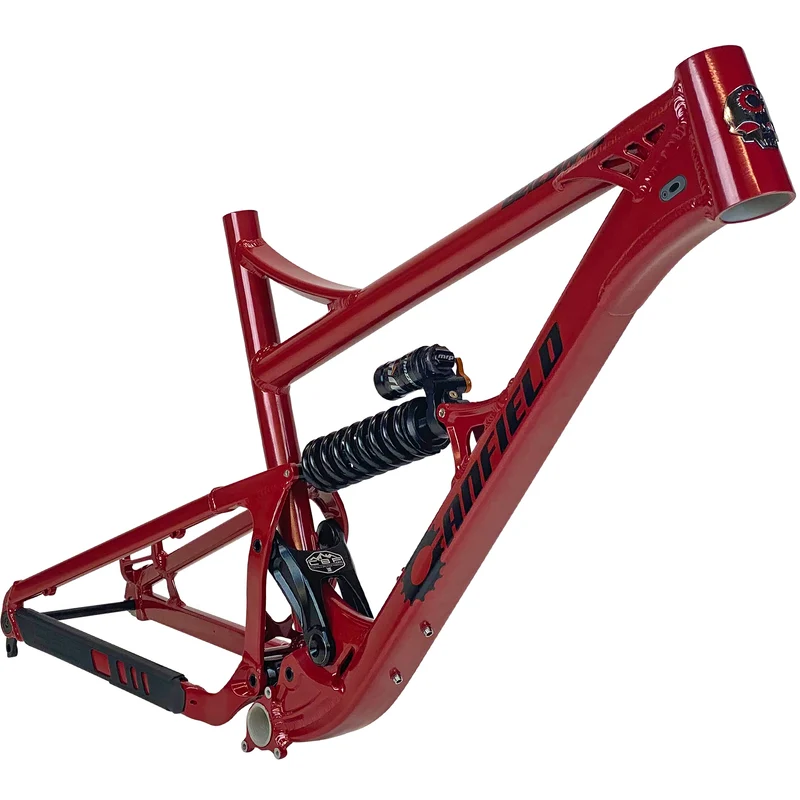

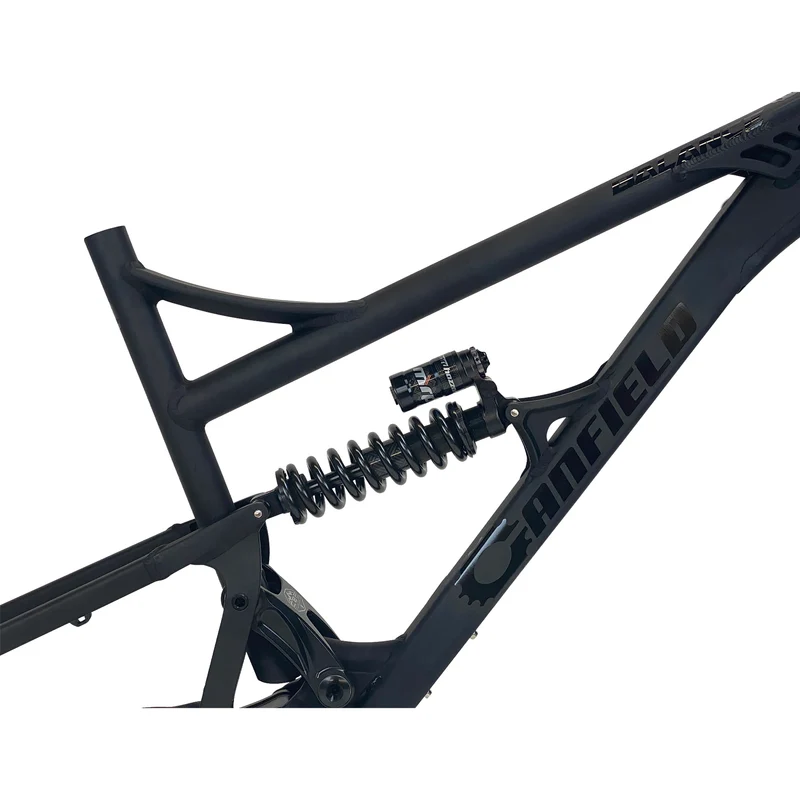

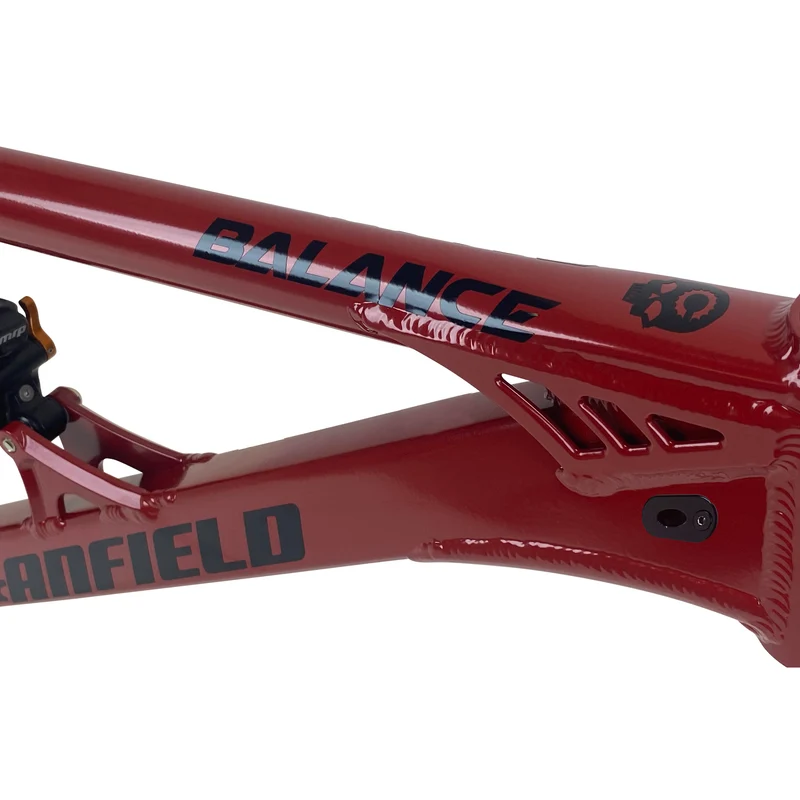

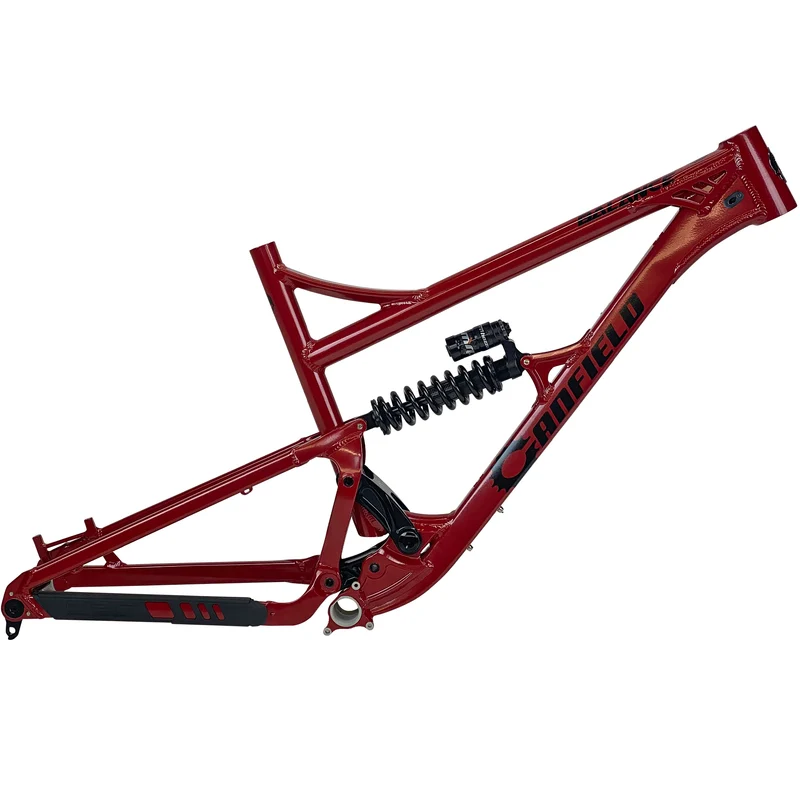

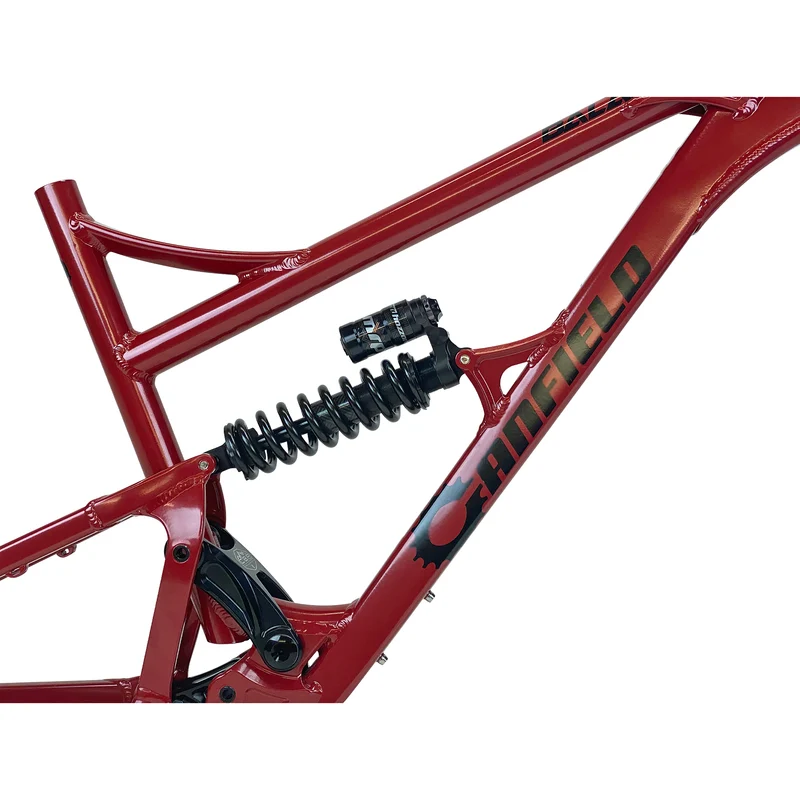

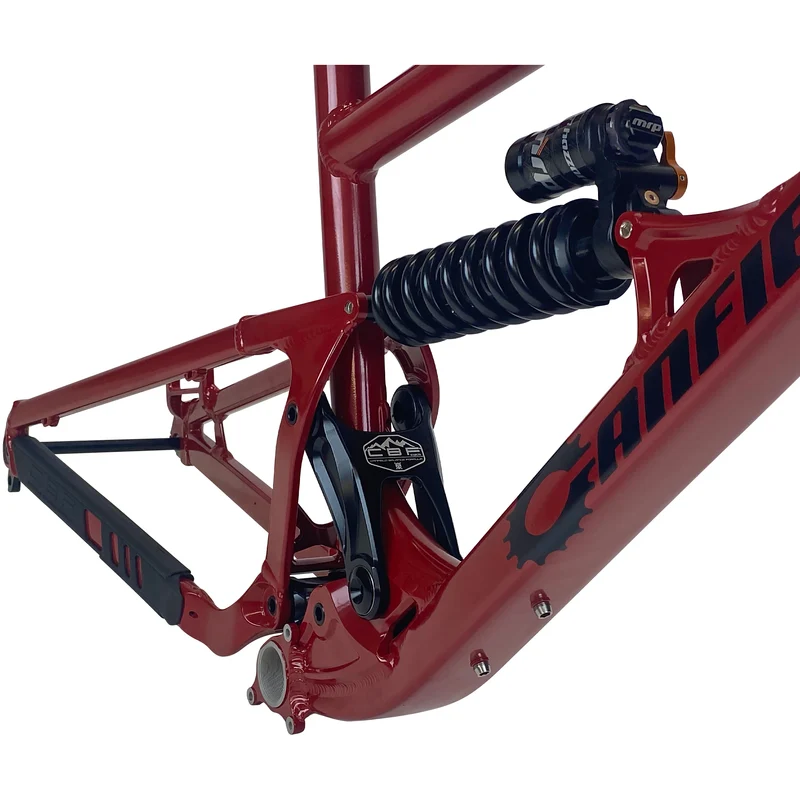

BALANCE - Frameset

27.5" WHEELS // 169MM REAR // 170MM FRONT

Pedal. Send. Repeat. The Balance is our idea of what an all-mountain bike should be: just as capable of flagrant disregard for line choice and taking big hits in stride as it is of getting you to the top under your own power. Burly enough for bell-to-bell bike-park laps, efficient enough to earn its turns.

FEATURES

• 27.5” All-Mountain / Enduro

• Mullet Compatible (160mm 29" fork recommended)
• 7005 aluminum with CNC links

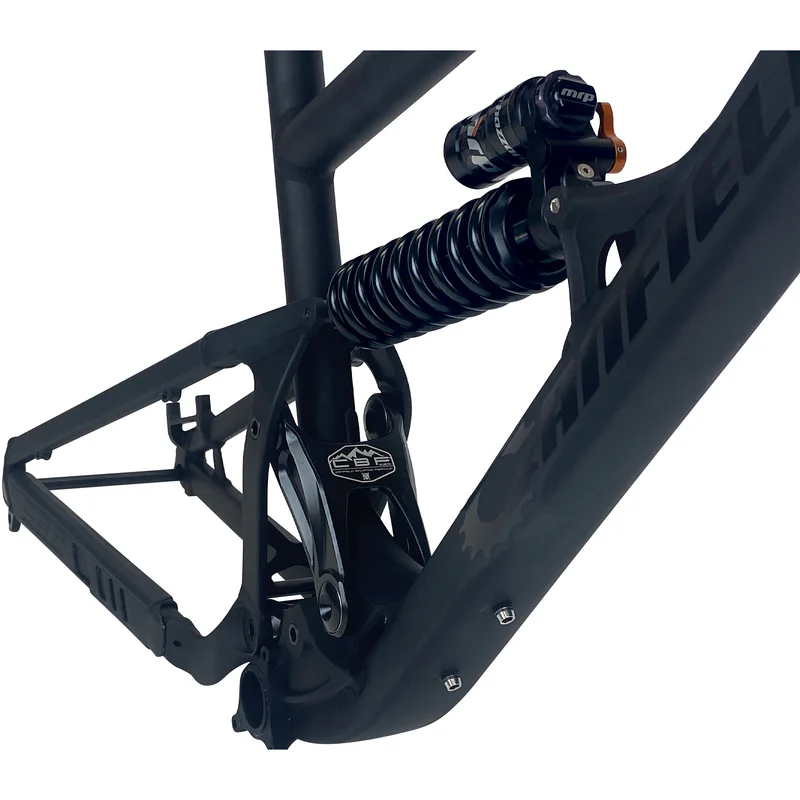

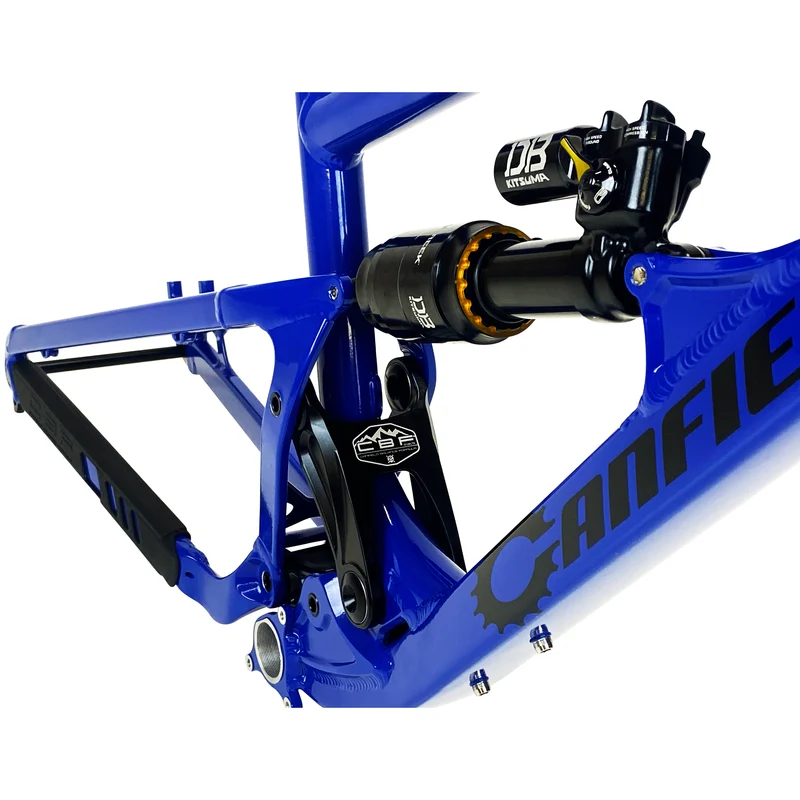

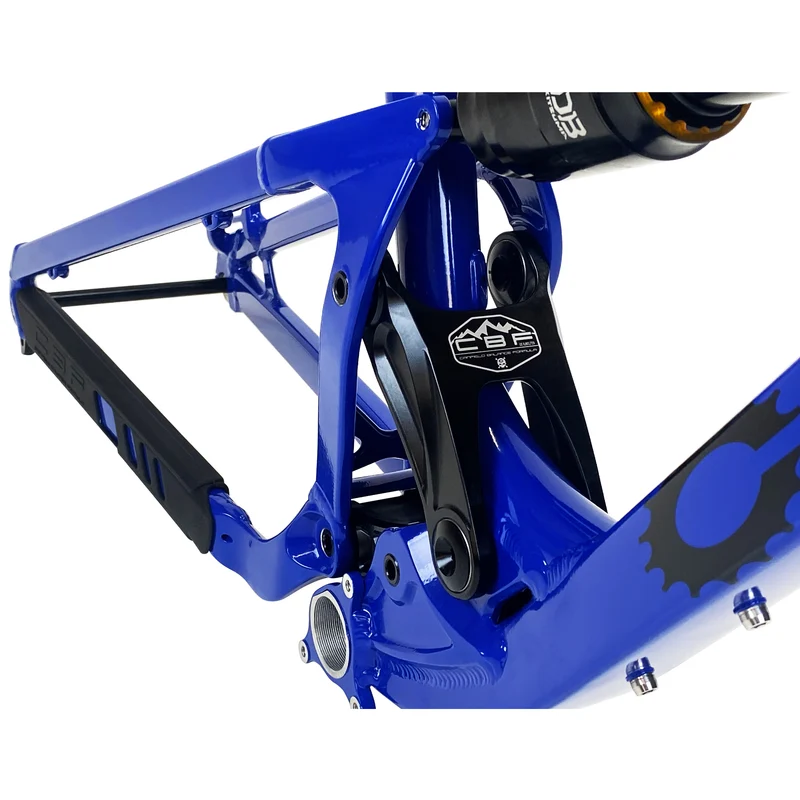

• Patented Canfield Balance Formula™ Suspension

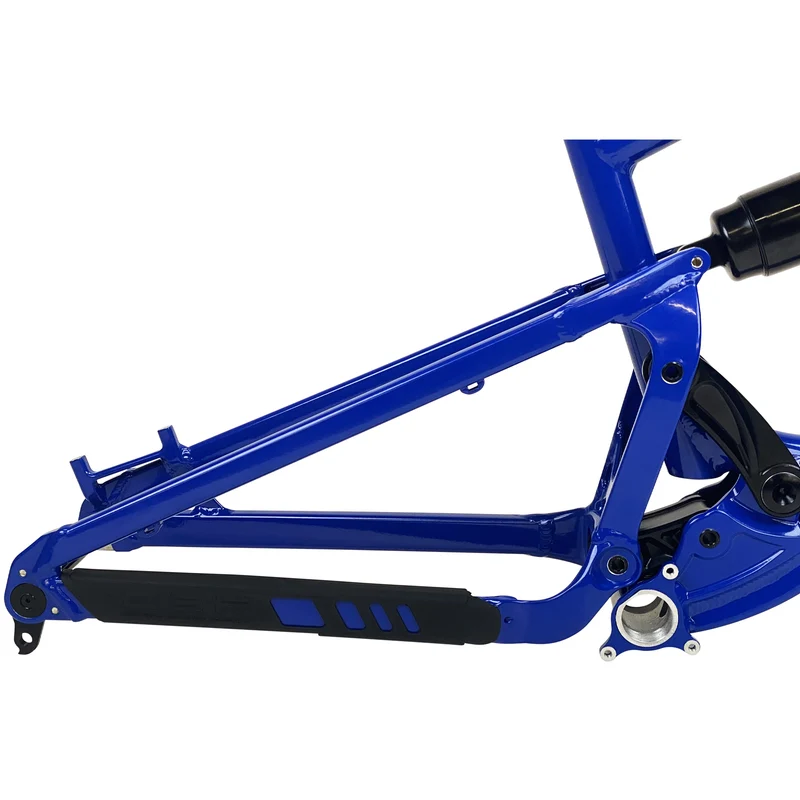

• Custom Chainstay Protector

• Internal Cable Routing

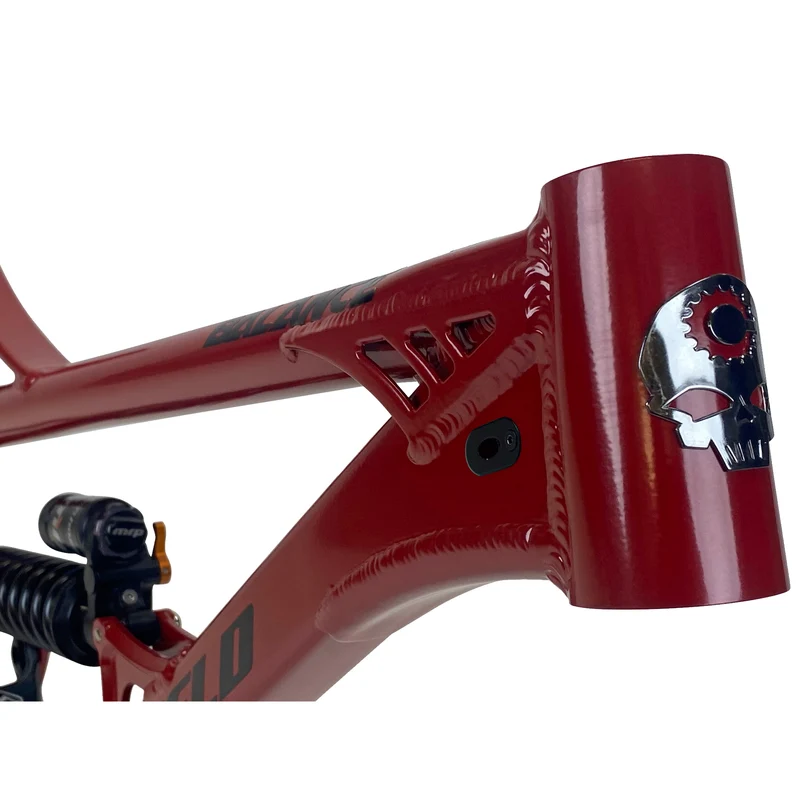

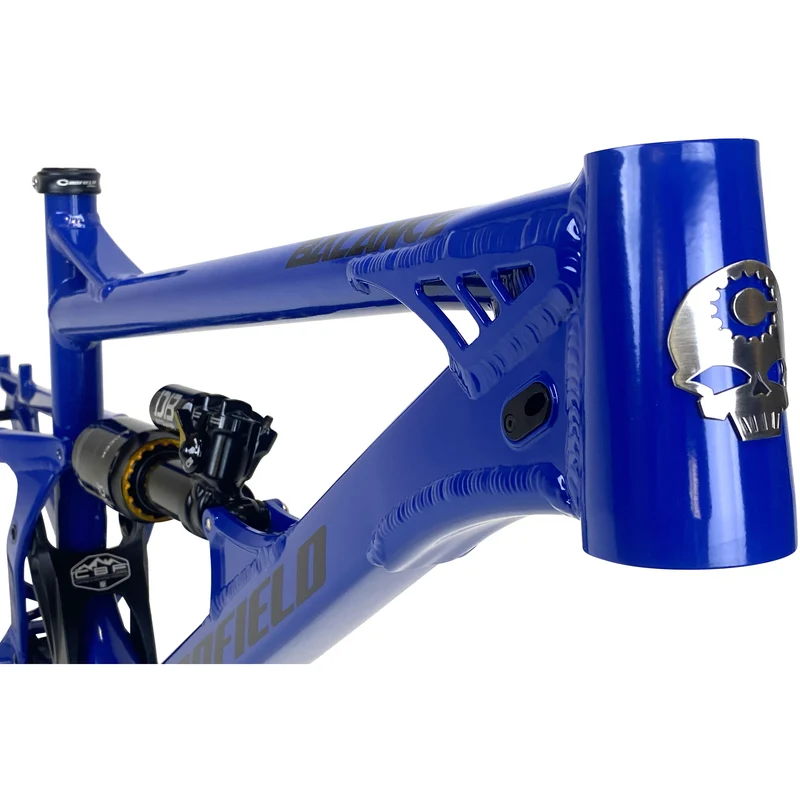

• Tapered headtube

• 15mm pivot bearings (6902 Max)

• Water-bottle mount

• Replaceable rear derailleur hanger

• Available in Small, Medium, Large and X-Large

FRAME SPECS

• Shock Specs: Metric:

• 169mm travel: 230mm x 65mm (22mmX8mm/36mmX8mm hardware)
• Recommend fork length: 170mm (160mm – 180mm acceptable range)

• Headset: Tapered 44mm upper/56mm lower

• Bottom bracket: 73mm BSA threaded

• Seatpost: 30.9mm, stealth dropper compatible

• Seatpost clamp: 35mm

• Rear dropouts: Boost 148mm x 12mm, Canfield axle included

• Rear tire clearance: 70mm/2.76 inches between stays

• ISCG tabs: ISCG 05

• Brake mount: Post 180mm

• Seatpost max insertion: 205mm(S), 225mm(M), 260mm(L), 305mm(XL)

GEO & SIZING

Size	Small	Medium	Large	XLarge
Top Tube Length (Effective)	592mm	613mm	635mm	658mm
Reach	438mm	457mm	476mm	496mm
Stack	606mm	611mm	620mm	629mm
Standover Height	697mm	725mm	743mm	762mm
Seat Tube Length	380mm	410mm	450mm	490mm
Wheel Base	1190mm	1216mm	1241mm	1265mm
Head Tube Angle	64°	64°	64°	64°
Seat Tube Angle (Effective)	75.7°	75.7°	75.7°	75.5°
Seat Tube Angle (Actual)	70.3°	70.3°	70.3°	70.3°
Chainstay Length	420mm	420mm	420mm	420mm
Bottom Bracket Drop	12.4mm	12.4mm	12.4mm	12.4mm
Bottom Bracket Height (*Approximate)	343mm	343mm	343mm	343mm
Head Tube length	115mm	120mmm	130mm	140mm

*Geo based on 565mm axle to crown fork (DVO Diamond 170mm)
SIZING

SIZE	S	M	L	XL
RIDER HEIGHT	5'2"-5'7"	5'5"-5'11"	5'9"-6'3"	6'1"-6'6"

*This size chart is only a suggestion. Every riding style and body is different.

* Photos of bike/spec may vary slightly from actual spec based upon pre-production frame and availability of parts. Any substituted parts will be of equal or greater value than original option listed. Complete bikes ship as a frame and build kit. While frames are prepped, reamed, chased and faced, they do require experienced assembly. If you are not confident in fully assembling and tuning your new Canfield bike, we recommend visiting your favorite local bike shop.
