TI NIMBLE 9

29" WHEELS // HARDTAIL // 150MM FRONT

🔥 The first-ever Ti Nimble 9 launch was a huge success and we are currently sold out until next time. If you'd like to know when we plan another run, hit the notify me button to get alerts. (No ETA presently for another round.)

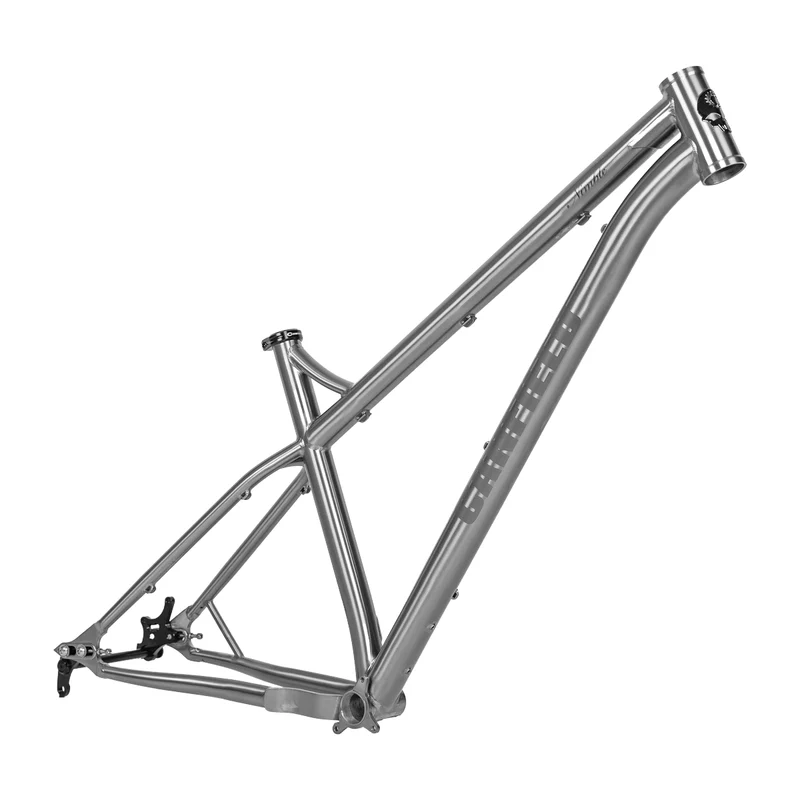

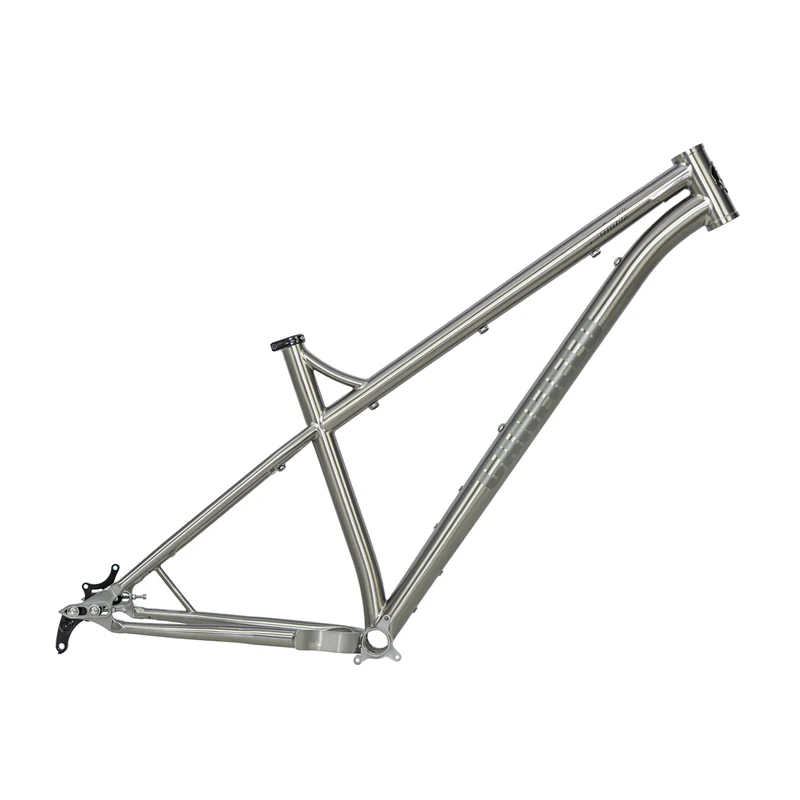

The Canfield Ti Nimble 9 is the evolution of an icon—our legendary steel hardtail reimagined in titanium for unparalleled ride quality, strength, and agility. Precision-crafted from oversized Ti-3AL-2.5V tubing, this limited-edition frame blends the supple, responsive feel of titanium with the playful, all-mountain capability that has made the Nimble 9 a fan favorite for over a decade.

The Ti Nimble 9 retains the aggressive all-mountain geometry that defines the N9—long, low, and slack with a 150mm fork—but now weighs a full 1.5 pounds less than its steel counterpart, giving riders even more confidence to charge technical descents and power up climbs.

Custom build options. Frame only / Frame + Fork / Frame + Build Kit / Complete

New for the Titanium Nimble 9:

• Ti-3AL-2.5V titanium frame – A balance of strength, compliance, and lightweight performance

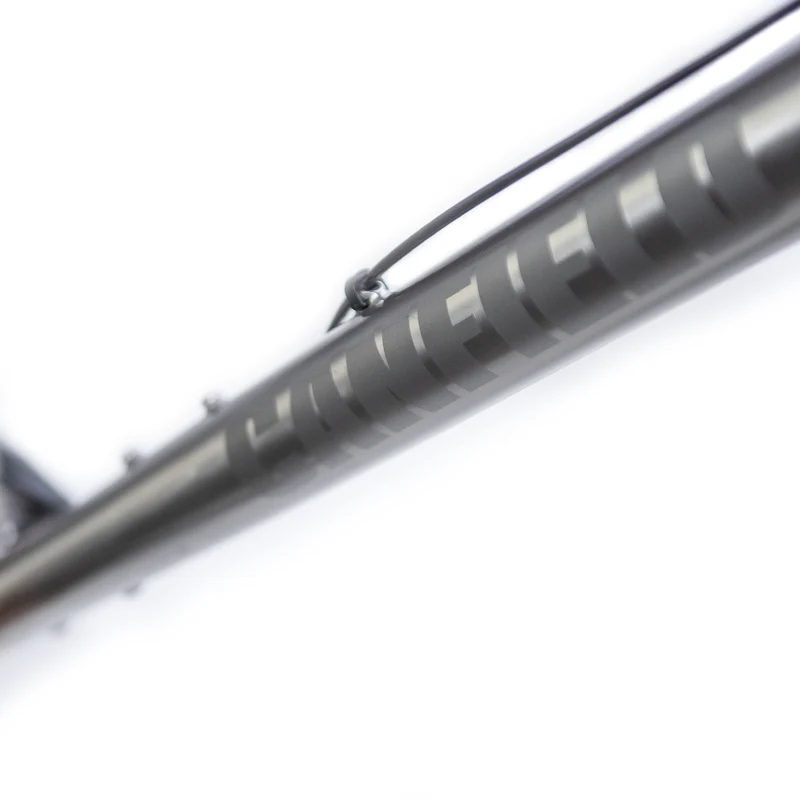

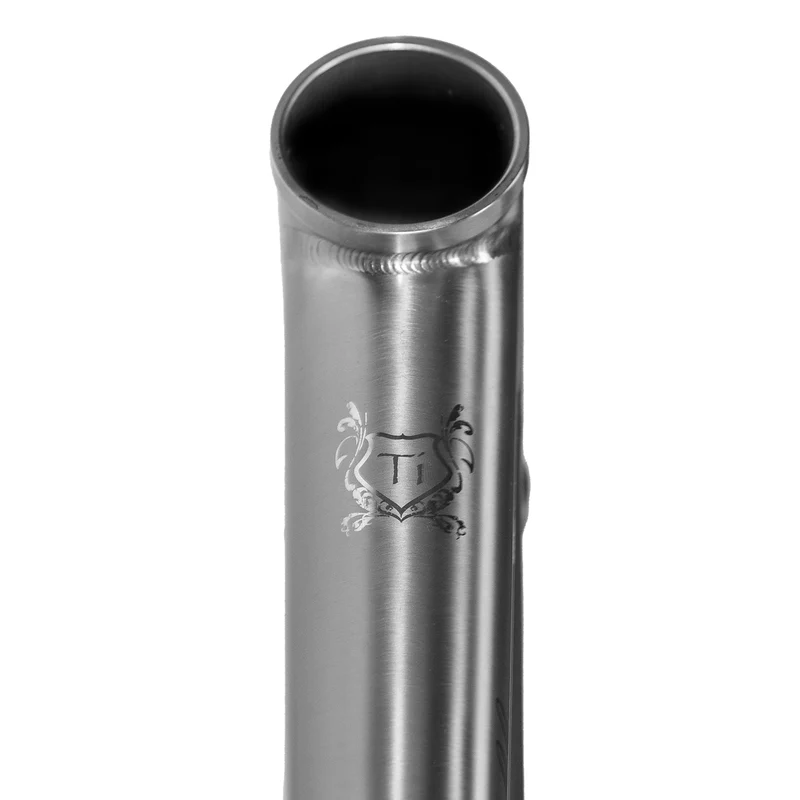

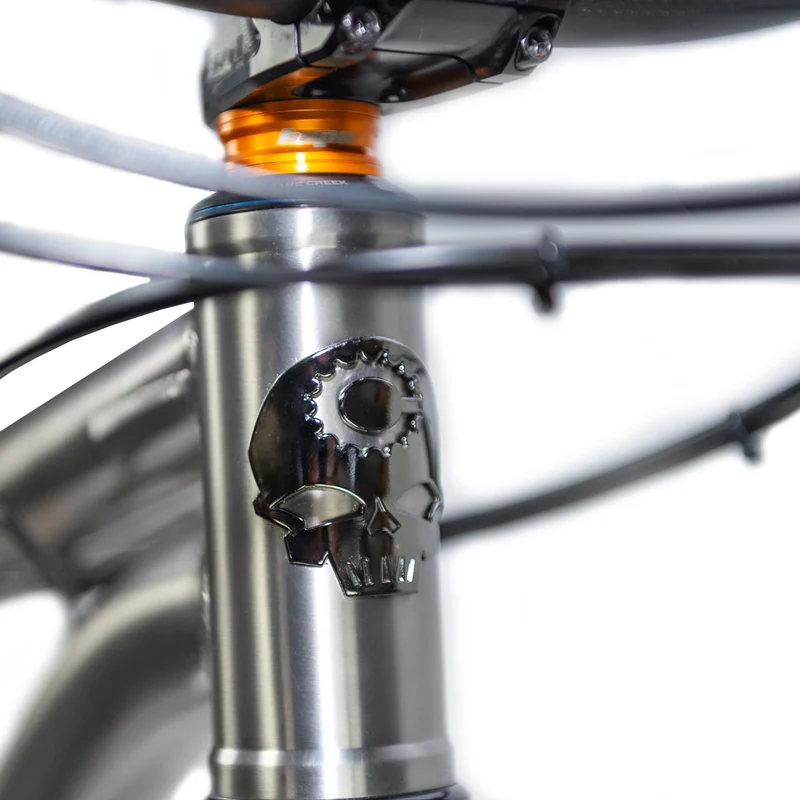

• Refined aesthetics – Brushed raw Ti finish with sand-blasted and laser-etched logos, including the debut of our redesigned Canfield logo
• Increased post insertion depth – Accommodates modern long-travel dropper posts

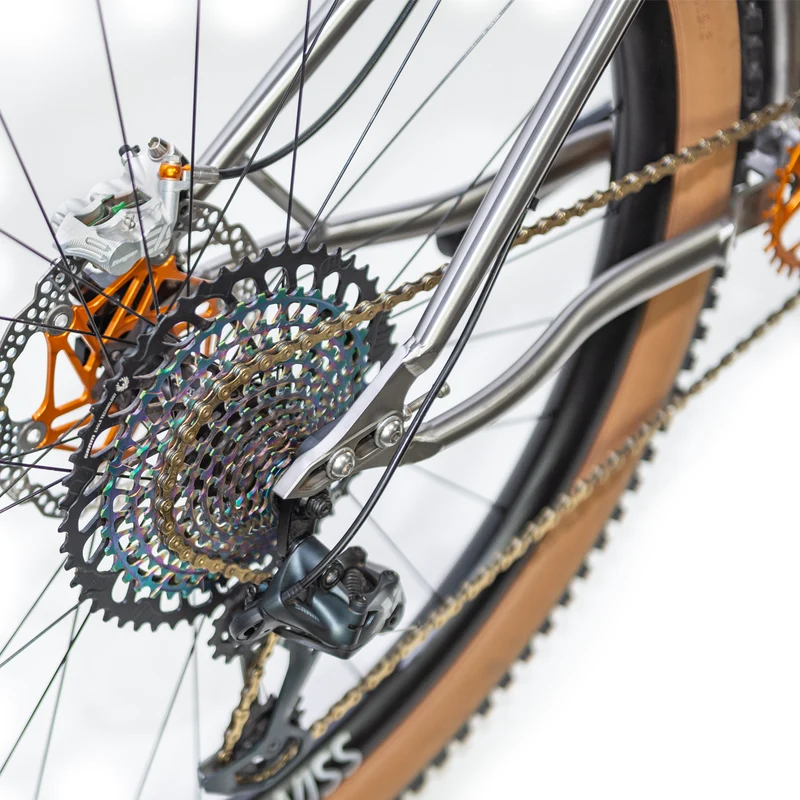

• Same legendary sliding dropouts – Adjustable chainstay length for single-speed or geared setups
• New XXL sizing – The first Canfield frame available in an XXL

Available sizes: S, M, L, XL, XXL
Frame-only starting at: $3,199.99
Complete builds starting at: $5,499.99

OPTIONS	COMPLETES / FORKS / BUILDS
Fork Options	Fox 36 Factory Grip X 150mm Cane Creek Helm MK II 150mm RockShox Lyrik Ultimate C2 150mm MRP Ribbon LT w/custom ShredKOTE 150mm
GX Build	SRAM GX Shifter & Derailleur, e13 Helix-R 9-50t Cassette Canfield AM Cranks (150/155/160/165/170), 32t Chainring TRP Slate Brakeset, 180/180 rotors DT Swiss E1900 Wheelset
XO Build	SRAM X01 Eagle Shifter, Derailleur, 10-52t Cassette SRAM XO1 165 Cranks w/32t Chainring SRAM G2 Ultimate Brakeset, 180/180 rotors Atomik AL30 Wheelset
XT Build	Shimano XT Shifter, Derailleur, Cassette, HG Chain Shimano XT 165 Cranks w/32t Chainring Shimano XT Brakeset, 180/180 rotors DT Swiss E1900 Wheelset
XTR Build	Shimano XTR Shifter, Derailleur, Cassette, HG Chain Hope Cranks w/32t Chainring (Size and Color Options Available) Hope Brakeset, 180/180 rotors DT Swiss Carbon EXC 1501 Wheelset
Other	Additional Items Included with all Build Kits
Tires	Maxxis DHF 2.5 & Maxxis Dissector 2.4
Sealant	TruckerCo
Seatpost	SDG Tellis
Saddle	SDG Canfield Limited Edition
Handlebar	e*thirteen Base 800mm
Grips	Lizard Skin w/Canfield logo
Stem	Canfield Special Blend AM
Headset	Cane Creek 40 w/Carbon Spacers
Seat Clamp	Canfield Black Forged
Cable Housing	Jagwire

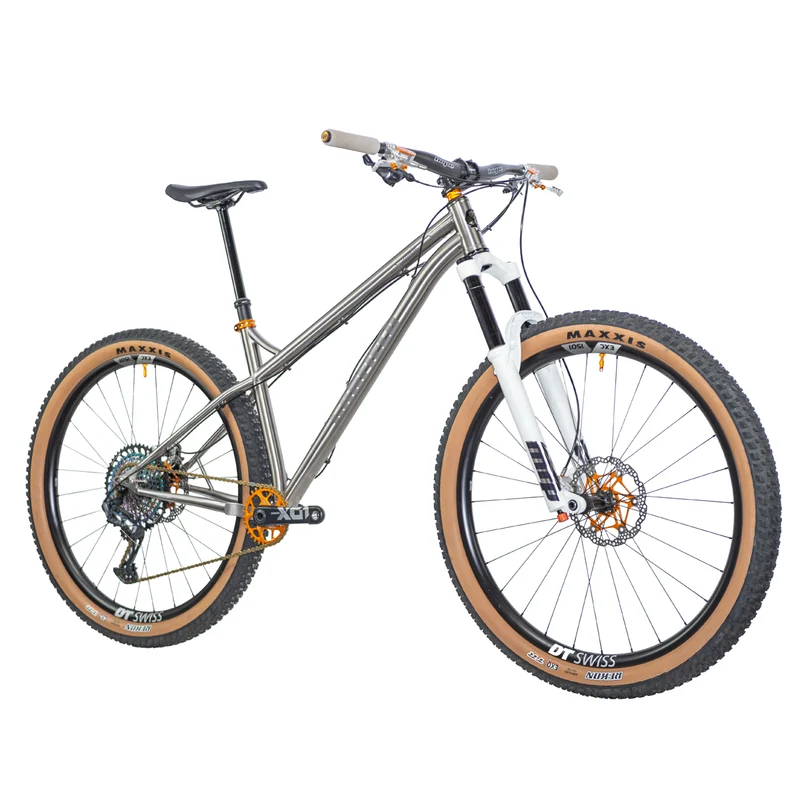

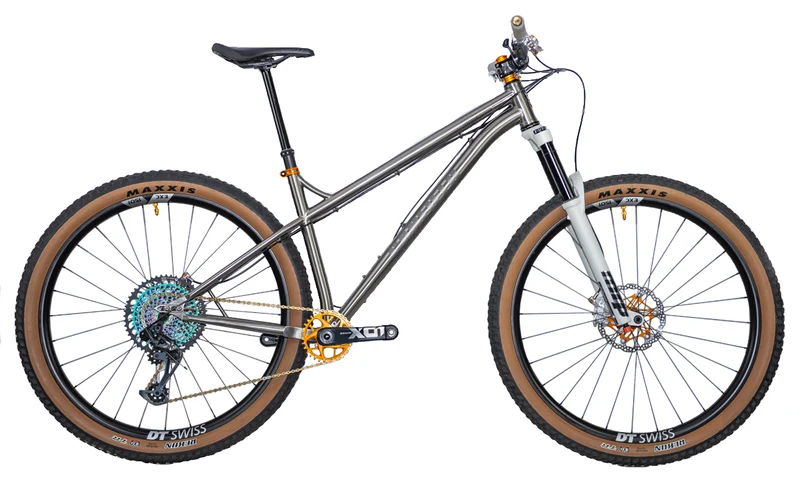

*Photos are for illustration purposes. Final production details and build spec subject to change. Full assembly is required on complete bikes. Complete bike shown is 27.7lbs with air fork.

FRAME FEATURES

• 29″ All Mountain
• 3AL 2.5V Titanium
• Frame Weight Large 5lbs

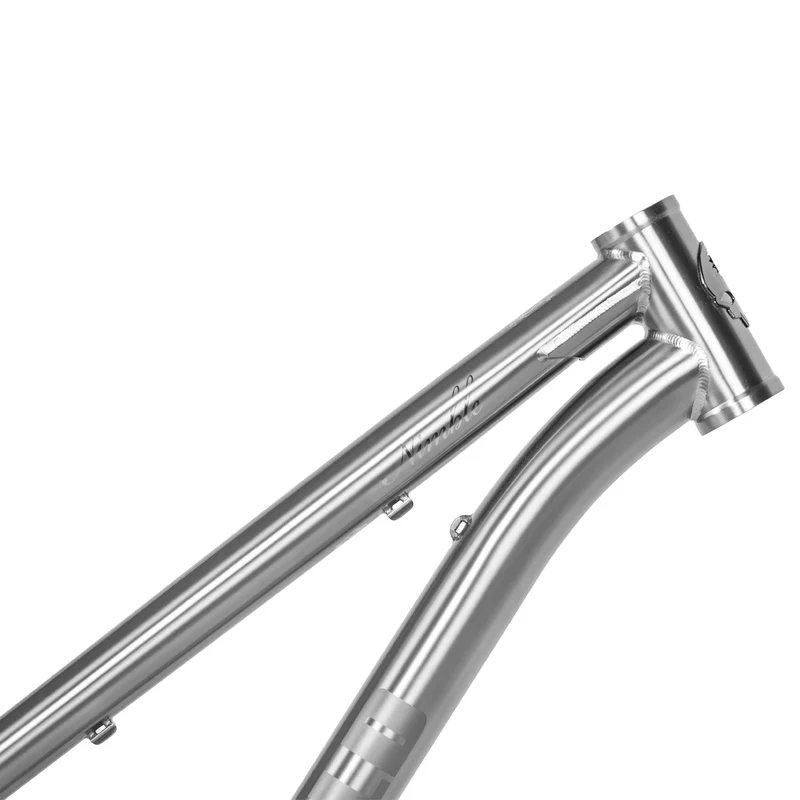

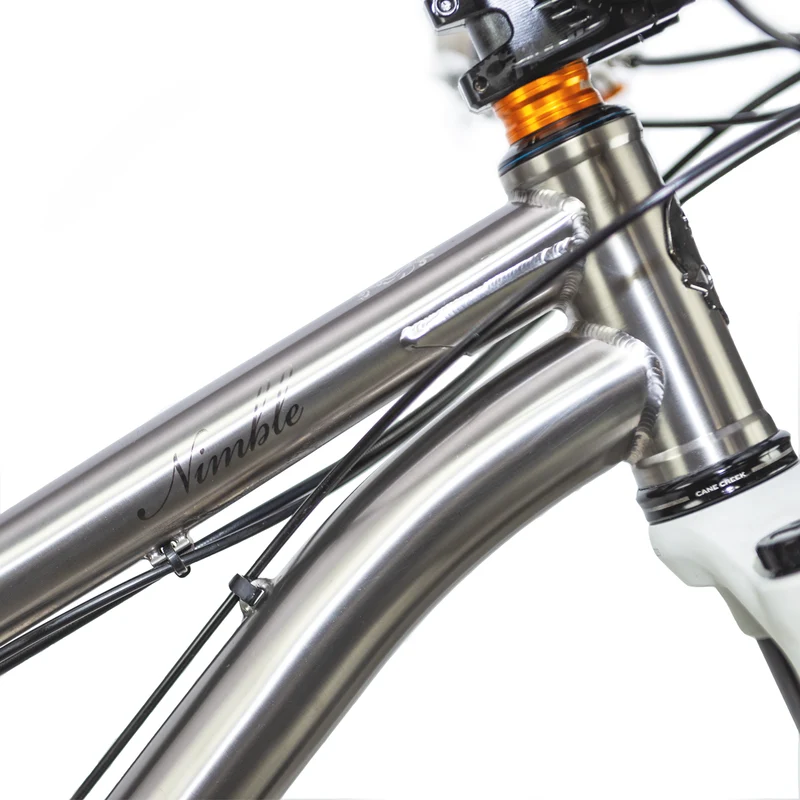

• Straight 44mm head tube
• 66° head angle (w/ 150mm fork)
• Recommended fork length: 140mm - 160mm, 44mm offset

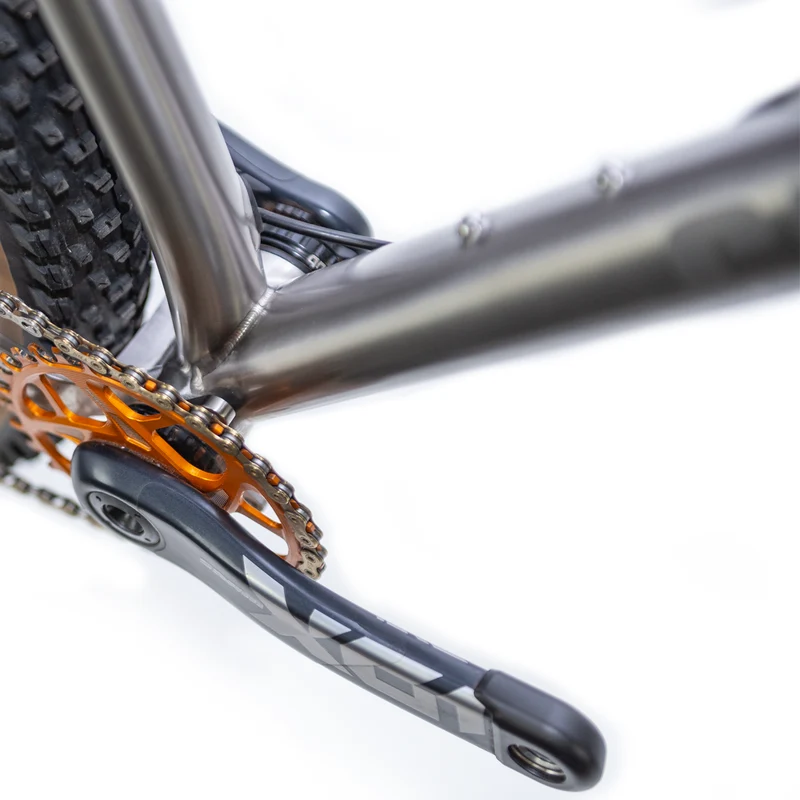

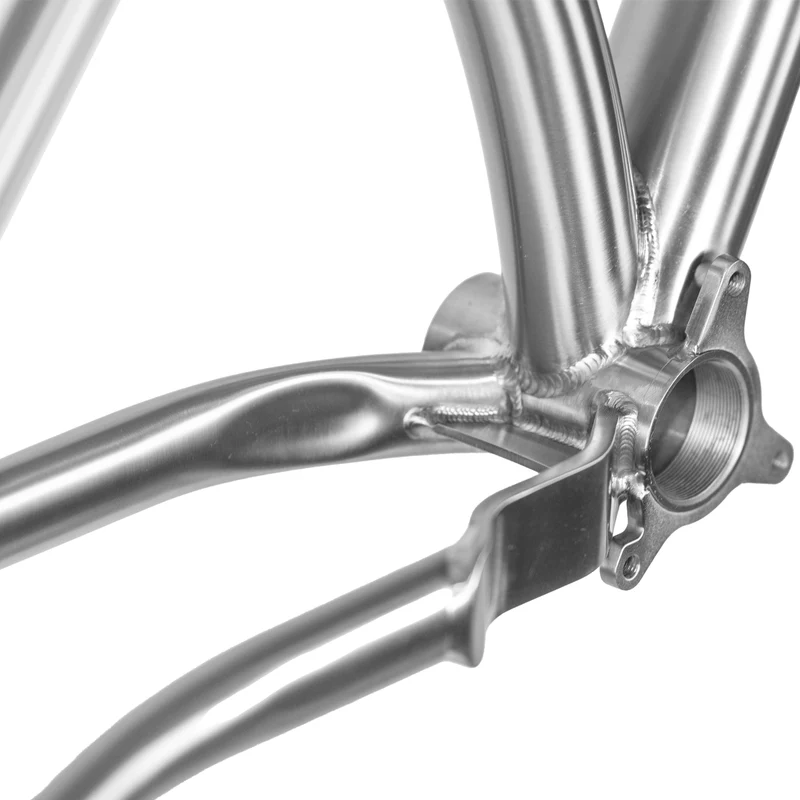

• 73mm BSA Threaded BB
• ISCG05 chain guide tabs

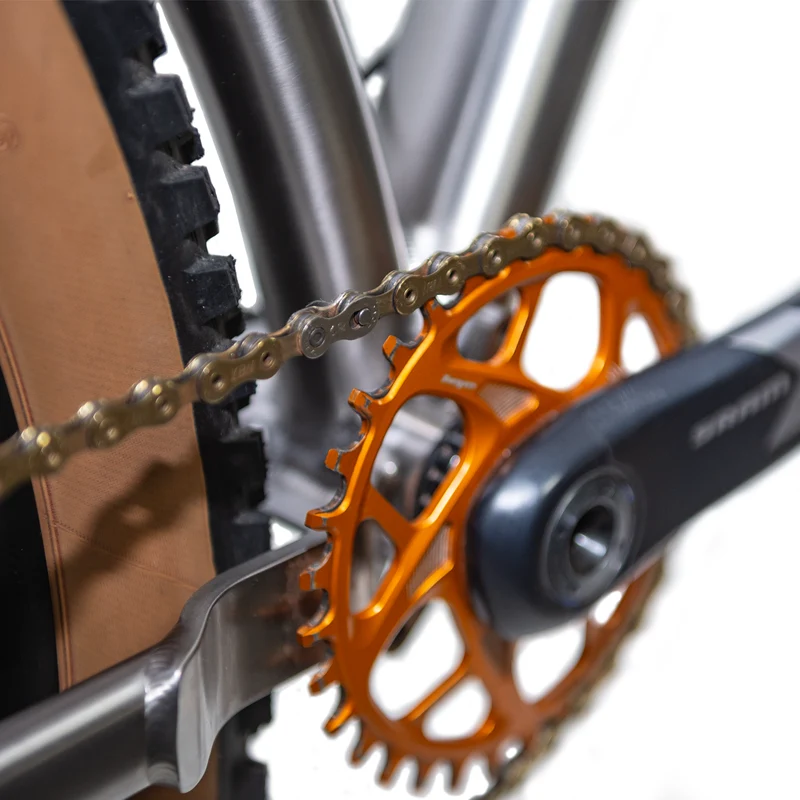

• Max chain ring size 38+ (GO BIG)
• Boost 148mm x 12mm rear dropouts, 52mm chain line

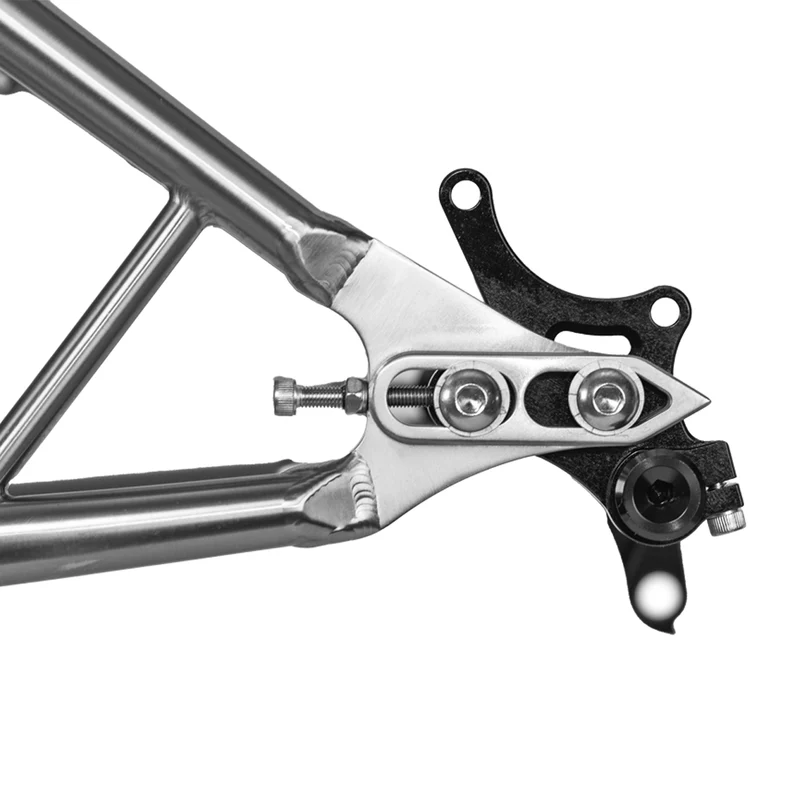

• Custom sliding adjustable dropouts, Single-speed-able
• Adjustable 417-433mm chainstays
• Includes IS 160 brake dropout, geared dropouts w/derailleur hanger, rear axle and hardware

• 31.6mm seat post
• 34.9 or 35mm clamp size
• Deep dropper post insertion, internal routing
• 81mm (3.19") Tire Opening, 2.5-2.8" tires can fit.
• External cable and brake routing
• Two water bottle bosses

Canfield Ti Nimble 9 Geo (Based on 150mm fork, 563mm Axle to Crown)
Top Tube Length (Effective) S-592mm / M-616mm / L-640mm / XL-663mm / XXL-686mm
Reach S-425mm / M-450mm / L-475mm / XL-500mm / XXL-525
Front Center S-747mm / M-772mm / L-797mm / XL-822mm / XXL-846
Stack S-646mm / M-650mm / L-660mm / XL-669mm / XXL-678
Standover Height S-705mm / M-705mm / L-705mm / XL-705mm / XXL-705
Wheel Base S-1154mm / M-1181mm / L-1210mm / XL-1239mm / XXL-1268
Head Tube Angle S-66° / M-66° / L-66° / XL-66° / XXL-66°
Head Tube Length S-100mm / M-105mm / L-115mm / XL-125mm / XXL-135mm
Seat Tube Angle (Effective) S-76° / M-76° / L-76° / XL-76° / XXL-76°
Seat Tube Angle (Actual) S-66.3° / M-66.3° / L-66.3° / XL-66.3° / XXL-66.3°
Seat Height vs. Effective Seat Tube Angle 500-76.5° / 600-76.2° / 700-75.9° / 800-75.75° / 900-75.6°
Seat Tube Length S-370mm / M-405mm / L-445mm / XL-490mm / XXL-490
Dropper Post Depth S-250mm / M-285mm / L-325mm / XL-370mm / XXL-370
Chainstay Length S-417-433mm / M-417-433mm / L-417-433mm / XL-417-433mm / XXL-417-433mm
Bottom Bracket Height S-325mm / M-325mm / L-325mm / XL-325mm / XXL-325mm
Bottom Bracket Drop S-50mm / M-50mm / L-50mm / XL-50mm / XXL-50mm
Geo based on 29" x 2.5" (749mm dia) tires and a 576mm axle to crown fork. (150mm travel, 44mm offset)

SIZING

SIZE	S	M	L	XL	XXL
RIDER HEIGHT	5'2"-5'7"	5'5"-5'11"	5'9"-6'3"	6'1"-6'6"	6'4" +

*This size chart is only a suggestion. Sizing depends on rider height, body type, personal preference and riding style.
