Anbieter: Canfield Bikes

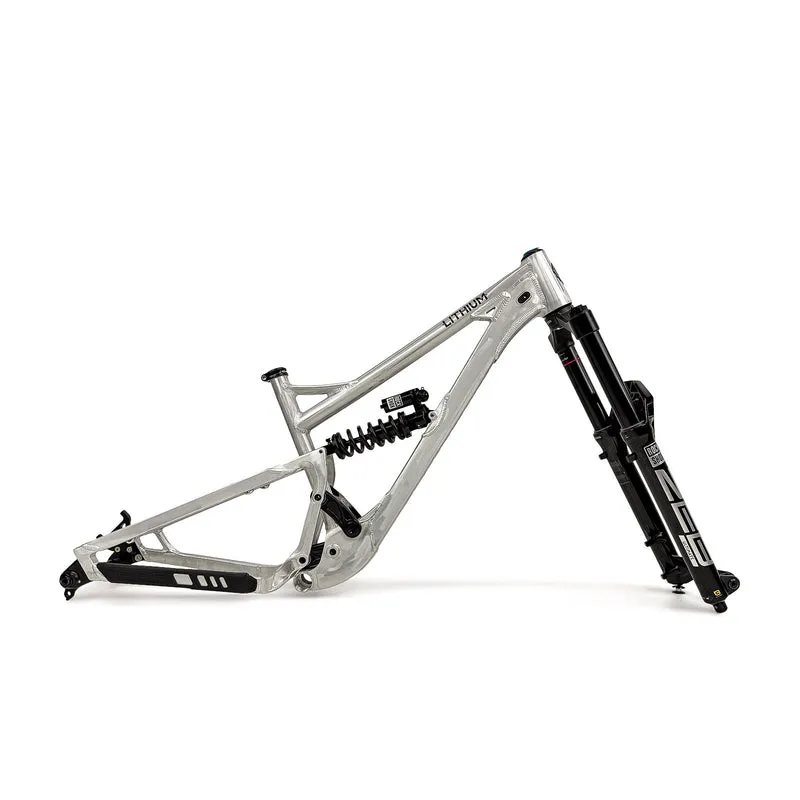

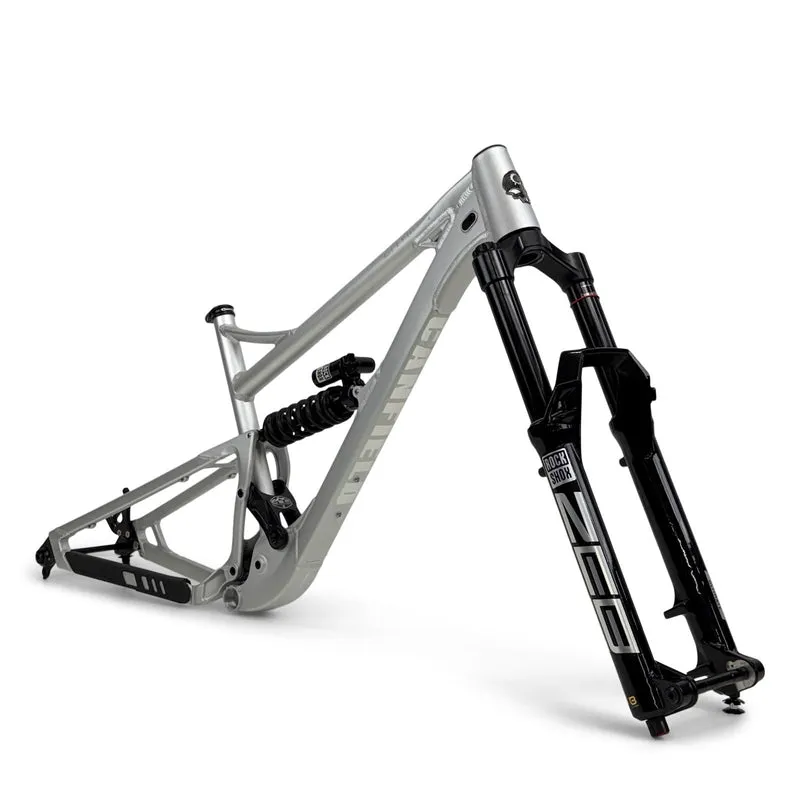

LITHIUM V3 - Frame, Shock + Fork

1.653,18 €2.984,53 €44% OFF

8 in den letzten 5 Stunden verkauft

Size: S

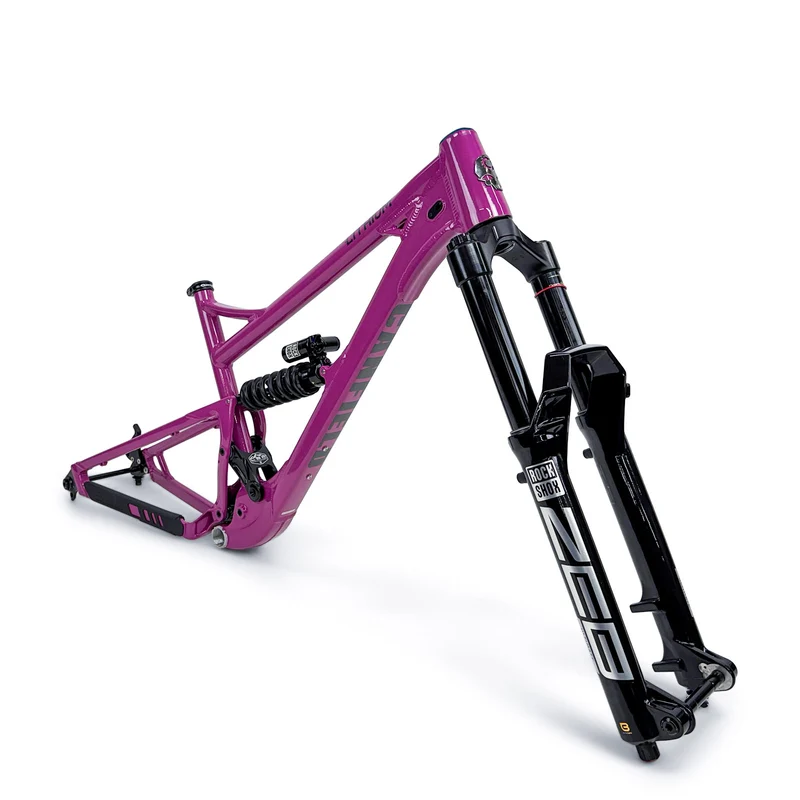

Color: Pinkle
Shock + Fork: Marzocchi Bomber Air EVOL LV + Bomber Z Air 170mm
Menge

Noch 50,00 € bis zum kostenlosen Versand

Voraussichtliche Lieferzeit : 6. Oktober - 8. Oktober.

Garantiert sicher bezahlen

Beschreibung

29" or MX WHEELS // 165mm REAR // 170mm FRONT

Have questions about sizing, shock setup, or which build makes the most sense for your riding? Call us — we love to talk bikes.

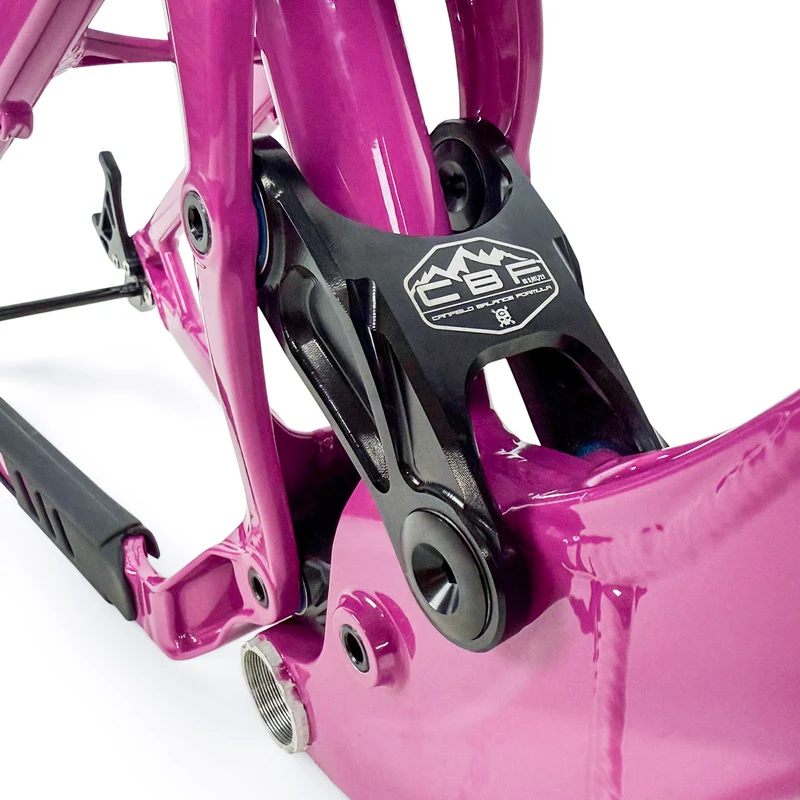

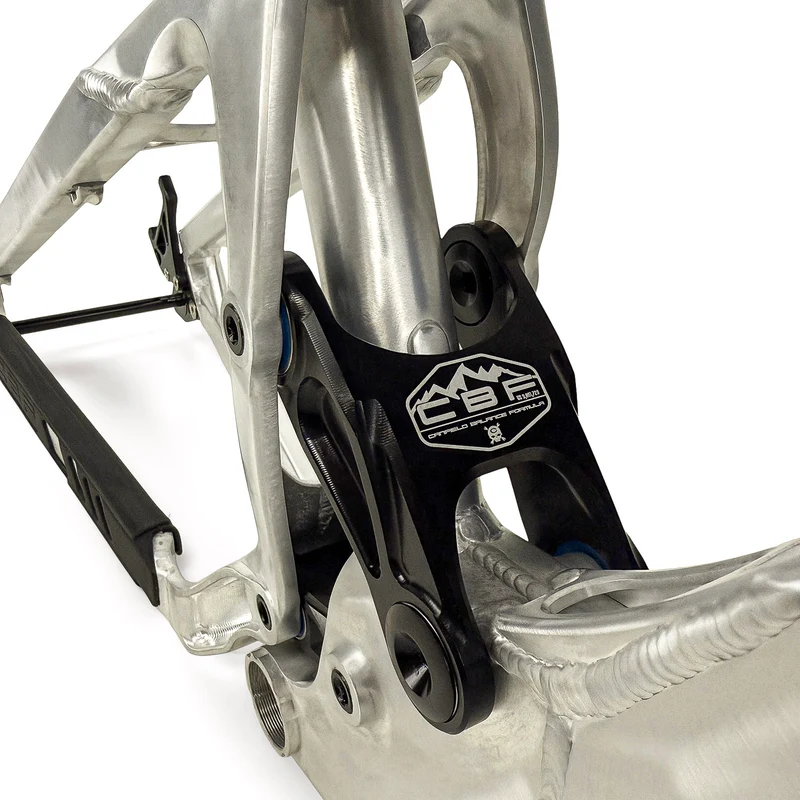

The Lithium V3 is the evolved version of our long-travel 29er platform — refined for modern drivetrains, adjustable rear center tuning, and next-generation versatility. Built around our patented Canfield Balance Formula™ (CBF™) suspension, the Lithium delivers efficient climbing traction and composed, high-speed descending without compromise.

Lithium V3 Features

  • UDH compatible rear triangle

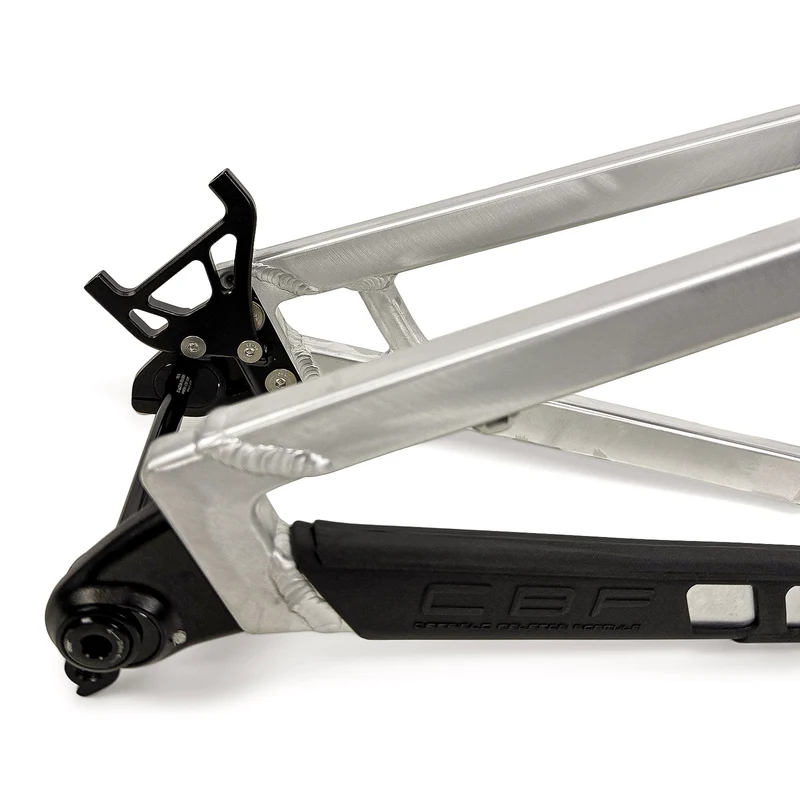

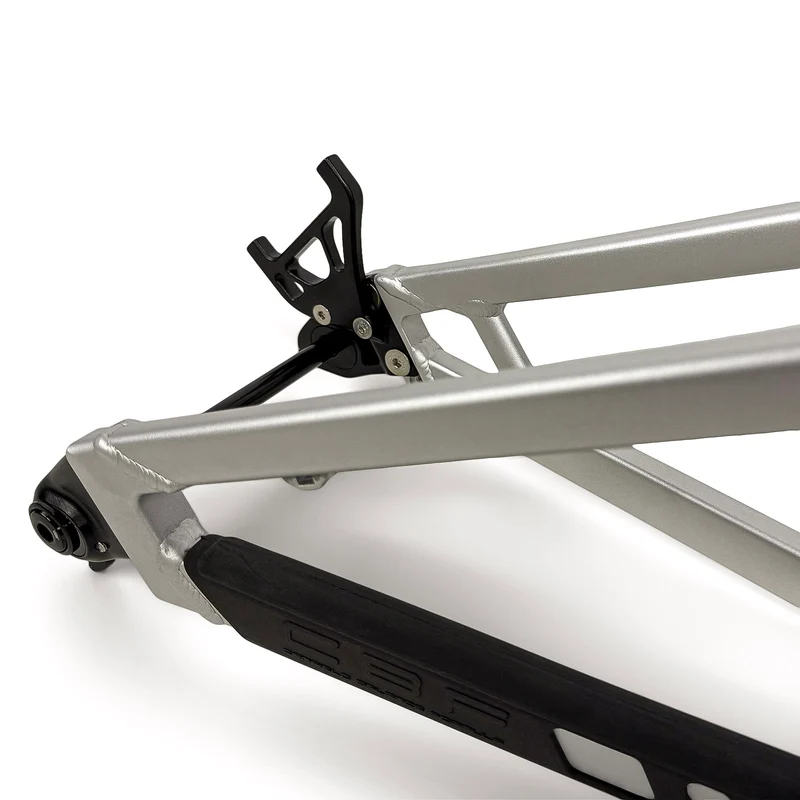

  • Rear axle flip chip: 427 / 435 / 443mm chainstay options
    29 : 435mm / 443mm chainstay options
    MX : 427mm / 435mm chainstay options
  • MX compatibility: Run 29" or MX (Mullet) wheelset with ease
  • 7005 aluminum frame with CNC 7075 links
  • Optimized for air or coil shocks
  • Recommended fork: 160–180mm (44mm offset)
  • 73mm BSA threaded bottom bracket
  • Boost 148 x 12mm rear spacing
  • Max tire clearance: 80mm
  • Shock: 230mm x 65mm (165mm travel)

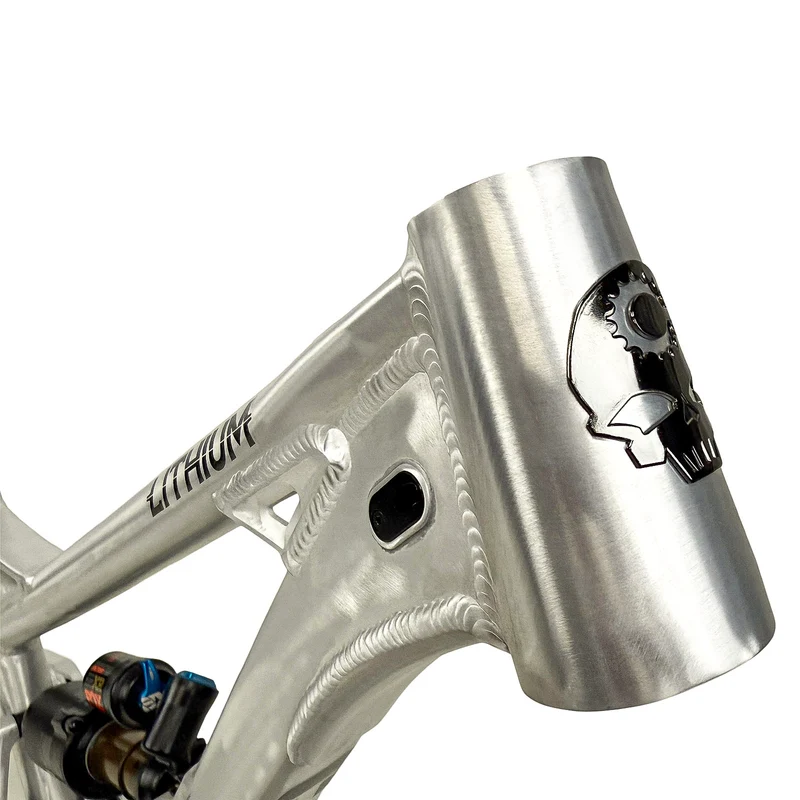

  • Tapered headtube 44/56
  • 15mm pivot bearings (6902 Max)
  • 30.9mm dropper compatible
  • ISCG 05 removable tabs
  • Post Mount 180 brake
  • Medium weight: 7.7 lb (frame only)

Geo & Sizing

S M L XL
Top Tube (Eff.) 575 601 628 655
Reach 425 450 475 500
Front Center 764 791 818 845
Stack 635 640 644 649
Standover 702 739 770 782
Wheelbase 1193 1221 1248 1275
Head Tube Angle* 64.5° 64.5° 64.5° 64.5°
Seat Tube Angle (Eff.) 76.7° 76.7° 76.7° 76.7°
Chainstay 435 435 435 435
BB Height 350 350 350 350
Rider Height 5'2"–5'7" 5'5"–5'11" 5'9"–6'3" 6'1"–6'6"

*Geo based on 170mm fork (582mm axle-to-crown).

Seat Height vs Effective Seat Tube Angle

600mm 77.43°
700mm 76.23°
800mm 75.33°

Coil Spring Rate Recommendations

120–140 lbs 300
140–160 lbs 350
160–180 lbs 400
180–200 lbs 450
200–220 lbs 500
220+ lbs 550

Shock Fitment Compatibility (Small / Medium)

Shock Small Medium
RockShox Deluxe Ultimate Air YES YES
RockShox Super Deluxe Ultimate Air YES YES
RockShox Vivid Ultimate Air YES YES
RockShox Vivid Coil  YES YES
MRP Hazard Coil YES YES
Cane Creek Kitsuma Air YES YES
Öhlins TTX2 Air YES YES
DVO Topaz YES YES
DVO Jade YES YES
Fox FLOAT X NO YES (Reversed)
Fox FLOAT X2 YES YES
Fox DHX2 YES YES
